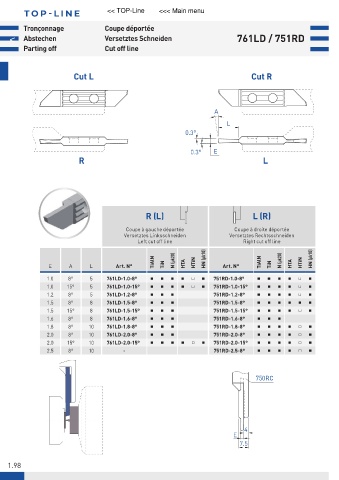

Page 102 - 21-036 APPLITEC catalogue.indb

T OP -LINE << TOP-Line <<< Main menu

Tronçonnage Coupe déportée
< Abstechen Versetztes Schneiden 761LD / 751RD
Parting off Cut off line

Cut L Cut R

A
L
0.3°

0.3° E
R L

R (L) L (R)
Coupe à gauche déportée Coupe à droite déportée
Versetztes Linksschneiden Versetztes Rechtsschneiden
Left cut off line Right cut off line

TiAlN N (μk20) HTiN HN (μk10) TiAlN N (μk20) HTiN HN (μk10)
E A L Art. N° TiN HTA Art. N° TiN HTA
1.0 8° 5 761LD-1.0-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751RD-1.0-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.0 15° 5 761LD-1.0-15° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751RD-1.0-15° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.2 8° 5 761LD-1.2-8° Ŷ Ŷ Ŷ 751RD-1.2-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 8° 8 761LD-1.5-8° Ŷ Ŷ Ŷ 751RD-1.5-8° Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.5 15° 8 761LD-1.5-15° Ŷ Ŷ Ŷ 751RD-1.5-15° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.6 8° 8 761LD-1.6-8° Ŷ Ŷ Ŷ 751RD-1.6-8° Ŷ Ŷ Ŷ
1.8 8° 10 761LD-1.8-8° Ŷ Ŷ Ŷ 751RD-1.8-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 8° 10 761LD-2.0-8° Ŷ Ŷ Ŷ 751RD-2.0-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 15° 10 761LD-2.0-15° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751RD-2.0-15° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.5 8° 10 - 751RD-2.5-8° Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ

750RC

4
E
7.5

1.98
