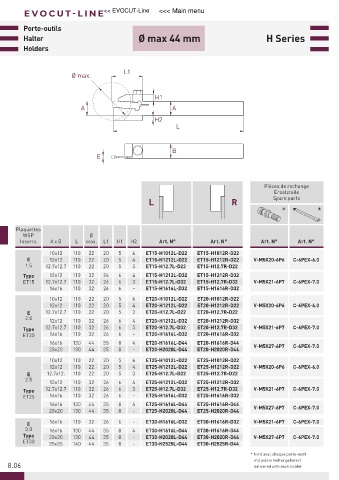

Page 360 - 21-036 APPLITEC catalogue.indb

E V OC U T -LINE << EVOCUT-Line <<< Main menu

Porte-outils
Halter Ø max 44 mm H Series
Holders

L1
Ø max.

H1
A A
H2
L

B
E

Pièces de rechange
Ersatzteile
Spare parts
L R
* *

Plaquettes
WSP Ø
Inserts A x B L max. L1 H1 H2 Art. N° Art. N° Art. N° Art. N°
10x12 110 22 20 5 6 ET15-H1012L-D22 ET15-H1012R-D22
E 12x12 110 22 20 5 4 ET15-H1212L-D22 ET15-H1212R-D22 V-M5X20-6P6 C-6PEX-6.0
1.5 12.7x12.7 110 22 20 5 3 ET15-H12.7L-D22 ET15-H12.7R-D22
Type 12x12 110 32 26 6 4 ET15-H1212L-D32 ET15-H1212R-D32
ET15 12.7x12.7 110 32 26 6 3 ET15-H12.7L-D32 ET15-H12.7R-D32 V-M5X21-6P7 C-6PEX-7.0
16x16 110 32 26 6 - ET15-H1616L-D32 ET15-H1616R-D32
10x12 110 22 20 5 6 ET20-H1012L-D22 ET20-H1012R-D22
12x12 110 22 20 5 4 ET20-H1212L-D22 ET20-H1212R-D22 V-M5X20-6P6 C-6PEX-6.0
E 12.7x12.7 110 22 20 5 3 ET20-H12.7L-D22 ET20-H12.7R-D22
2.0
12x12 110 32 26 6 4 ET20-H1212L-D32 ET20-H1212R-D32
Type 12.7x12.7 110 32 26 6 3 ET20-H12.7L-D32 ET20-H12.7R-D32 V-M5X21-6P7 C-6PEX-7.0
ET20 16x16 110 32 26 6 - ET20-H1616L-D32 ET20-H1616R-D32
16x16 130 44 35 8 4 ET20-H1616L-D44 ET20-H1616R-D44
V-M5X27-6P7 C-6PEX-7.0
20x20 130 44 35 8 - ET20-H2020L-D44 ET20-H2020R-D44
10x12 110 22 20 5 6 ET25-H1012L-D22 ET25-H1012R-D22
12x12 110 22 20 5 4 ET25-H1212L-D22 ET25-H1212R-D22 V-M5X20-6P6 C-6PEX-6.0
E 12.7x12. 110 22 20 5 3 ET25-H12.7L-D22 ET25-H12.7R-D22
2.5
12x12 110 32 26 6 4 ET25-H1212L-D32 ET25-H1212R-D32
12.7x12.7 110 32 26 6 3 ET25-H12.7L-D32 ET25-H12.7R-D32 V-M5X21-6P7 C-6PEX-7.0
Type
ET25 16x16 110 32 26 6 - ET25-H1616L-D32 ET25-H1616R-D32
16x16 130 44 35 8 4 ET25-H1616L-D44 ET25-H1616R-D44
V-M5X27-6P7 C-6PEX-7.0
20x20 130 44 35 8 - ET25-H2020L-D44 ET25-H2020R-D44
16x16 110 32 26 6 - ET30-H1616L-D32 ET30-H1616R-D32 V-M5X21-6P7 C-6PEX-7.0
E
3.0 16x16 130 44 35 8 4 ET30-H1616L-D44 ET30-H1616R-D44
Type 20x20 130 44 35 8 - ET30-H2020L-D44 ET30-H2020R-D44 V-M5X27-6P7 C-6PEX-7.0
ET30
25x25 140 44 35 8 - ET30-H2525L-D44 ET30-H2525R-D44
* livré avec chaque porte-outil
mit jedem Halter geliefert
8.06 delivered with each holder
