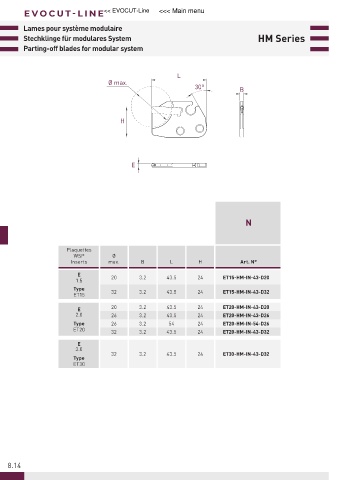

Page 368 - 21-036 APPLITEC catalogue.indb
P. 368
E V OC U T -LINE << EVOCUT-Line <<< Main menu
Lames pour système modulaire
Stechklinge für modulares System HM Series
Parting-off blades for modular system
L
Ø max.
30°
B
H
E
N
Plaquettes
WSP Ø
Inserts max. B L H Art. N°
E
1.5 20 3.2 43.5 24 ET15-HM-IN-43-D20
Type
ET15 32 3.2 43.5 24 ET15-HM-IN-43-D32
20 3.2 43.5 24 ET20-HM-IN-43-D20
E
2.0 26 3.2 43.5 24 ET20-HM-IN-43-D26
Type 26 3.2 54 24 ET20-HM-IN-54-D26
ET20
32 3.2 43.5 24 ET20-HM-IN-43-D32
E
3.0
32 3.2 43.5 24 ET30-HM-IN-43-D32
Type
ET30
8.14
