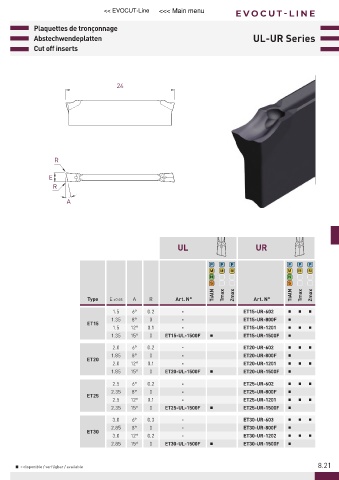

Page 375 - 21-036 APPLITEC catalogue.indb

<< EVOCUT-Line <<< Main menu E V OC U T -LINE

Plaquettes de tronçonnage
Abstechwendeplatten UL-UR Series
Cut off inserts

24

R

E
R
A

UL UR

P P P P P P
M M M M M M
N N
S S
TiAlN Tmax Zmax TiAlN Tmax Zmax
Type E ±0.05 A R Art. N° Art. N°
1.5 6° 0.2 - ET15-UR-602 Ŷ Ŷ Ŷ
1.35 8° 0 - ET15-UR-800F Ŷ
ET15
1.5 12° 0.1 - ET15-UR-1201 Ŷ Ŷ Ŷ
1.35 15° 0 ET15-UL-1500F Ŷ ET15-UR-1500F Ŷ
2.0 6° 0.2 - ET20-UR-602 Ŷ Ŷ Ŷ
1.85 8° 0 - ET20-UR-800F Ŷ
ET20
2.0 12° 0.1 - ET20-UR-1201 Ŷ Ŷ Ŷ
1.85 15° 0 ET20-UL-1500F Ŷ ET20-UR-1500F Ŷ
2.5 6° 0.2 - ET25-UR-602 Ŷ Ŷ Ŷ
2.35 8° 0 - ET25-UR-800F Ŷ
ET25
2.5 12° 0.1 - ET25-UR-1201 Ŷ Ŷ Ŷ
2.35 15° 0 ET25-UL-1500F Ŷ ET25-UR-1500F Ŷ
3.0 6° 0.3 - ET30-UR-603 Ŷ Ŷ Ŷ
2.85 8° 0 - ET30-UR-800F Ŷ
ET30
3.0 12° 0.2 - ET30-UR-1202 Ŷ Ŷ Ŷ
2.85 15° 0 ET30-UL-1500F Ŷ ET30-UR-1500F Ŷ

Ŷ = disponible / verfügbar / available 8.21
