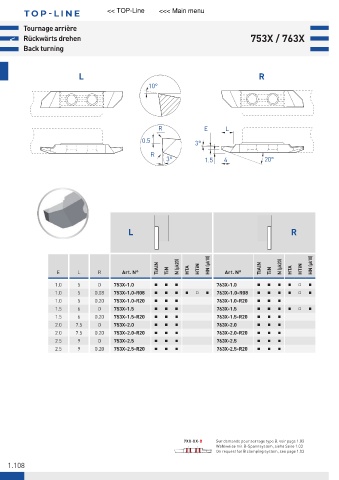

Tournage arrière
< Rückwärts drehen 753X / 763X
Back turning

L R
10°

R E L
0.5 3°
R
3° 1.5 4 20°

L R

TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
E L R Art. N° TiN Art. N° TiN

1.0 5 0 753X-1.0 Ŷ Ŷ Ŷ 763X-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.0 5 0.08 753X-1.0-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 763X-1.0-R08 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.0 5 0.20 753X-1.0-R20 Ŷ Ŷ Ŷ 763X-1.0-R20 Ŷ Ŷ Ŷ
1.5 6 0 753X-1.5 Ŷ Ŷ Ŷ 763X-1.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 6 0.20 753X-1.5-R20 Ŷ Ŷ Ŷ 763X-1.5-R20 Ŷ Ŷ Ŷ
2.0 7.5 0 753X-2.0 Ŷ Ŷ Ŷ 763X-2.0 Ŷ Ŷ Ŷ
2.0 7.5 0.20 753X-2.0-R20 Ŷ Ŷ Ŷ 763X-2.0-R20 Ŷ Ŷ Ŷ
2.5 9 0 753X-2.5 Ŷ Ŷ Ŷ 763X-2.5 Ŷ Ŷ Ŷ
2.5 9 0.20 753X-2.5-R20 Ŷ Ŷ Ŷ 763X-2.5-R20 Ŷ Ŷ Ŷ

7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.108
