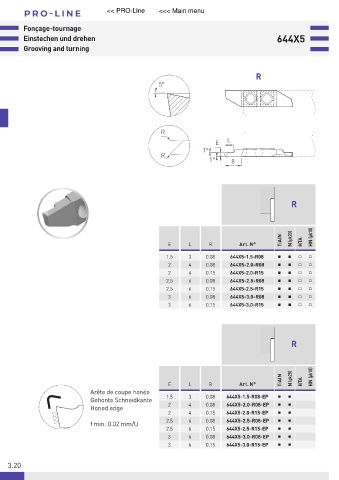

Page 218 - 21-036 APPLITEC catalogue.indb

P R O-LINE << PRO-Line <<< Main menu

Fonçage-tournage
Einstechen und drehen 644X5
Grooving and turning

R
5°

R
E L
1°
R
1° 8

R

TiAlN N (μk20) HN (μk10)
E L R Art. N° HTA
1.5 3 0.08 644X5-1.5-R08 Ŷ Ŷ Ƒ Ƒ
2 4 0.08 644X5-2.0-R08 Ŷ Ŷ Ƒ Ƒ
2 4 0.15 644X5-2.0-R15 Ŷ Ŷ Ƒ Ƒ
2.5 6 0.08 644X5-2.5-R08 Ŷ Ŷ Ƒ Ƒ
2.5 6 0.15 644X5-2.5-R15 Ŷ Ŷ Ƒ Ƒ
3 6 0.08 644X5-3.0-R08 Ŷ Ŷ Ƒ Ƒ
3 6 0.15 644X5-3.0-R15 Ŷ Ŷ Ƒ Ƒ

R

TiAlN N (μk20) HTA HN (μk10)
E L R Art. N°
Arête de coupe honée
1.5 3 0.08 644X5-1.5-R08-EP Ŷ Ŷ
Gehonte Schneidkante
2 4 0.08 644X5-2.0-R08-EP Ŷ Ŷ
Honed edge
2 4 0.15 644X5-2.0-R15-EP Ŷ Ŷ
2.5 6 0.08 644X5-2.5-R08-EP Ŷ Ŷ
f min: 0.02 mm/U
2.5 6 0.15 644X5-2.5-R15-EP Ŷ Ŷ
3 6 0.08 644X5-3.0-R08-EP Ŷ Ŷ
3 6 0.15 644X5-3.0-R15-EP Ŷ Ŷ
