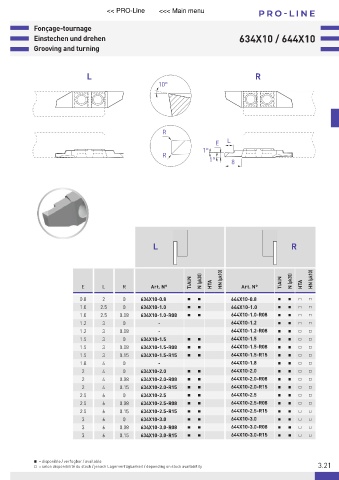

Fonçage-tournage
Einstechen und drehen 634X10 / 644X10
Grooving and turning

L R
10°

R
L
E
1°
R
1° 8

L R

TiAlN N (μk20) HTA HN (μk10) TiAlN N (μk20) HTA HN (μk10)
E L R Art. N° Art. N°
0.8 2 0 634X10-0.8 Ŷ Ŷ 644X10-0.8 Ŷ Ŷ Ƒ Ƒ
1.0 2.5 0 634X10-1.0 Ŷ Ŷ 644X10-1.0 Ŷ Ŷ Ƒ Ƒ
1.0 2.5 0.08 634X10-1.0-R08 Ŷ Ŷ 644X10-1.0-R08 Ŷ Ŷ Ƒ Ƒ
1.2 3 0 - 644X10-1.2 Ŷ Ŷ Ƒ Ƒ
1.2 3 0.08 - 644X10-1.2-R08 Ŷ Ŷ Ƒ Ƒ
1.5 3 0 634X10-1.5 Ŷ Ŷ 644X10-1.5 Ŷ Ŷ Ƒ Ƒ
1.5 3 0.08 634X10-1.5-R08 Ŷ Ŷ 644X10-1.5-R08 Ŷ Ŷ Ƒ Ƒ
1.5 3 0.15 634X10-1.5-R15 Ŷ Ŷ 644X10-1.5-R15 Ŷ Ŷ Ƒ Ƒ
1.8 4 0 - 644X10-1.8 Ŷ Ŷ Ƒ Ƒ
2 4 0 634X10-2.0 Ŷ Ŷ 644X10-2.0 Ŷ Ŷ Ƒ Ƒ
2 4 0.08 634X10-2.0-R08 Ŷ Ŷ 644X10-2.0-R08 Ŷ Ŷ Ƒ Ƒ
2 4 0.15 634X10-2.0-R15 Ŷ Ŷ 644X10-2.0-R15 Ŷ Ŷ Ƒ Ƒ
2.5 6 0 634X10-2.5 Ŷ Ŷ 644X10-2.5 Ŷ Ŷ Ƒ Ƒ
2.5 6 0.08 634X10-2.5-R08 Ŷ Ŷ 644X10-2.5-R08 Ŷ Ŷ Ƒ Ƒ
2.5 6 0.15 634X10-2.5-R15 Ŷ Ŷ 644X10-2.5-R15 Ŷ Ŷ Ƒ Ƒ
3 6 0 634X10-3.0 Ŷ Ŷ 644X10-3.0 Ŷ Ŷ Ƒ Ƒ
3 6 0.08 634X10-3.0-R08 Ŷ Ŷ 644X10-3.0-R08 Ŷ Ŷ Ƒ Ƒ
3 6 0.15 634X10-3.0-R15 Ŷ Ŷ 644X10-3.0-R15 Ŷ Ŷ Ƒ Ƒ

Ŷ = disponible / verfügbar / available
3.21
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
