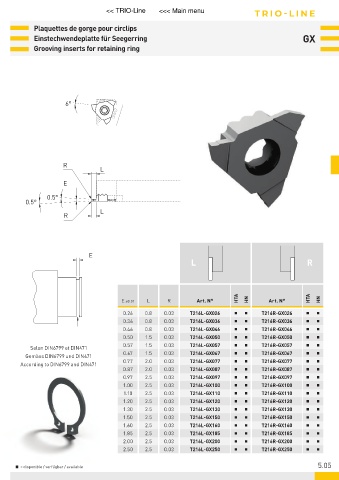

Plaquettes de gorge pour circlips
Einstechwendeplatte für Seegerring GX
Grooving inserts for retaining ring

6°

R
L
E

0.5°
0.5°
L
R

E
L R

HTA HN HTA HN
E ±0.01 L R Art. N° Art. N°
0.26 0.8 0.03 T216L-GX026 Ŷ Ŷ T216R-GX026 Ŷ Ŷ
0.36 0.8 0.03 T216L-GX036 Ŷ Ŷ T216R-GX036 Ŷ Ŷ
0.46 0.8 0.03 T216L-GX046 Ŷ Ŷ T216R-GX046 Ŷ Ŷ
0.50 1.5 0.03 T216L-GX050 Ŷ Ŷ T216R-GX050 Ŷ Ŷ
0.57 1.5 0.03 T216L-GX057 Ŷ Ŷ T216R-GX057 Ŷ Ŷ
Selon DIN6799 et DIN471
0.67 1.5 0.03 T216L-GX067 Ŷ Ŷ T216R-GX067 Ŷ Ŷ
Gemäss DIN6799 und DIN471
0.77 2.0 0.03 T216L-GX077 Ŷ Ŷ T216R-GX077 Ŷ Ŷ
According to DIN6799 and DIN471
0.87 2.0 0.03 T216L-GX087 Ŷ Ŷ T216R-GX087 Ŷ Ŷ
0.97 2.5 0.03 T216L-GX097 Ŷ Ŷ T216R-GX097 Ŷ Ŷ
1.00 2.5 0.03 T216L-GX100 Ŷ Ŷ T216R-GX100 Ŷ Ŷ
1.10 2.5 0.03 T216L-GX110 Ŷ Ŷ T216R-GX110 Ŷ Ŷ
1.20 2.5 0.03 T216L-GX120 Ŷ Ŷ T216R-GX120 Ŷ Ŷ
1.30 2.5 0.03 T216L-GX130 Ŷ Ŷ T216R-GX130 Ŷ Ŷ
1.50 2.5 0.03 T216L-GX150 Ŷ Ŷ T216R-GX150 Ŷ Ŷ
1.60 2.5 0.03 T216L-GX160 Ŷ Ŷ T216R-GX160 Ŷ Ŷ
1.85 2.5 0.03 T216L-GX185 Ŷ Ŷ T216R-GX185 Ŷ Ŷ
2.00 2.5 0.03 T216L-GX200 Ŷ Ŷ T216R-GX200 Ŷ Ŷ
2.50 2.5 0.03 T216L-GX250 Ŷ Ŷ T216R-GX250 Ŷ Ŷ

Ŷ = disponible / verfügbar / available 5.05
