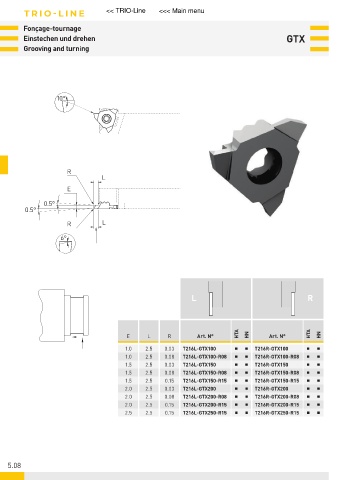

Page 272 - 21-036 APPLITEC catalogue.indb

TRIO-LINE << TRIO-Line <<< Main menu

Fonçage-tournage
Einstechen und drehen GTX
Grooving and turning

10°

R
L
E

0.5°
0.5°
R L
6°

L R

HTA HTA
E L R Art. N° HN Art. N° HN
1.0 2.5 0.03 T216L-GTX100 Ŷ Ŷ T216R-GTX100 Ŷ Ŷ
1.0 2.5 0.08 T216L-GTX100-R08 Ŷ Ŷ T216R-GTX100-R08 Ŷ Ŷ
1.5 2.5 0.03 T216L-GTX150 Ŷ Ŷ T216R-GTX150 Ŷ Ŷ
1.5 2.5 0.08 T216L-GTX150-R08 Ŷ Ŷ T216R-GTX150-R08 Ŷ Ŷ
1.5 2.5 0.15 T216L-GTX150-R15 Ŷ Ŷ T216R-GTX150-R15 Ŷ Ŷ
2.0 2.5 0.03 T216L-GTX200 Ŷ Ŷ T216R-GTX200 Ŷ Ŷ
2.0 2.5 0.08 T216L-GTX200-R08 Ŷ Ŷ T216R-GTX200-R08 Ŷ Ŷ
2.0 2.5 0.15 T216L-GTX200-R15 Ŷ Ŷ T216R-GTX200-R15 Ŷ Ŷ
2.5 2.5 0.15 T216L-GTX250-R15 Ŷ Ŷ T216R-GTX250-R15 Ŷ Ŷ

5.08
