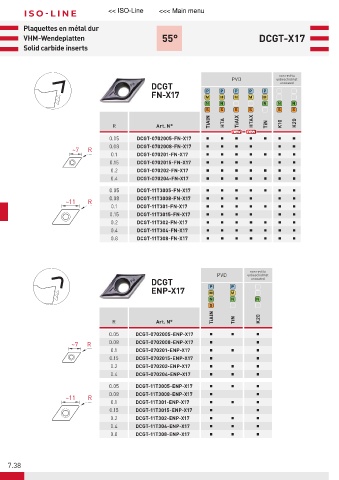

Page 326 - 21-036 APPLITEC catalogue.indb

ISO-LINE << ISO-Line <<< Main menu

Plaquettes en métal dur
VHM-Wendeplatten 55° DCGT-X17
Solid carbide inserts

non revêtu
PVD unbeschichtet
DCGT uncoated
FN-X17 P M P M P M M P M P
N N N N N
S S S S S S
TiAlN HTA TiAlX HTAX K20
R Art. N° TiN K10

0.05 DCGT-0702005-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.08 DCGT-0702008-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
~7 R
0.1 DCGT-070201-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.15 DCGT-0702015-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.2 DCGT-070202-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.4 DCGT-070204-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.05 DCGT-11T3005-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.08 DCGT-11T3008-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
~11 R
0.1 DCGT-11T301-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.15 DCGT-11T3015-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.2 DCGT-11T302-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.4 DCGT-11T304-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
0.8 DCGT-11T308-FN-X17 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ

non revêtu
PVD unbeschichtet
uncoated
DCGT
P P
ENP-X17 M M
N N N
S
TiAlN K20
R Art. N° TiN
0.05 DCGT-0702005-ENP-X17 Ŷ Ŷ Ŷ
0.08 DCGT-0702008-ENP-X17 Ŷ Ŷ
~7 R
0.1 DCGT-070201-ENP-X17 Ŷ Ŷ Ŷ
0.15 DCGT-0702015-ENP-X17 Ŷ Ŷ
0.2 DCGT-070202-ENP-X17 Ŷ Ŷ Ŷ
0.4 DCGT-070204-ENP-X17 Ŷ Ŷ Ŷ
0.05 DCGT-11T3005-ENP-X17 Ŷ Ŷ Ŷ
0.08 DCGT-11T3008-ENP-X17 Ŷ Ŷ
~11 R
0.1 DCGT-11T301-ENP-X17 Ŷ Ŷ Ŷ
0.15 DCGT-11T3015-ENP-X17 Ŷ Ŷ
0.2 DCGT-11T302-ENP-X17 Ŷ Ŷ Ŷ
0.4 DCGT-11T304-ENP-X17 Ŷ Ŷ Ŷ
0.8 DCGT-11T308-ENP-X17 Ŷ Ŷ Ŷ

7.38
