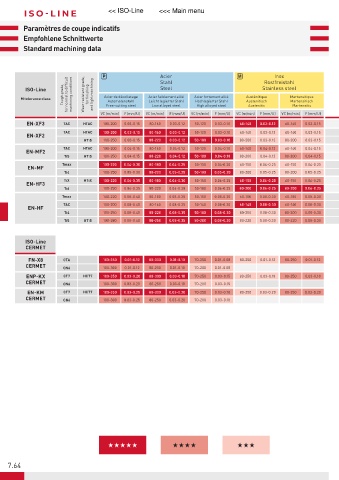

Paramètres de coupe indicatifs
Empfohlene Schnittwerte
Standard machining data

Inox
Rostfreistahl
Stahl
Tough grade, for normal to difficult machining conditions Wear resistant grade, for finishing and light machining
Steel
ISO-Line P Acier M Stainless steel
M tolerance class Acier de décolletage Acier faiblement allié Acier fortement allié Austénitique Martensitique
Hochlegierter Stahl
Leicht legierter Stahl
Austenitisch
Martensitisch
Automatenstahl
Austenitic
Low alloyed steel
High alloyed steel
Free-cutting steel
Martensitic
VC (m/min) F (mm/U) VC (m/min) F (mm/U) VC (m/min) F (mm/U) VC (m/min) F (mm/U) VC (m/min) F (mm/U)
EN-XF3 TAC HTAC 100-200 0.03-0.15 80-160 0.03-0.12 50-120 0.03-0.10 60-140 0.03-0.12 60-140 0.03-0.15
TAC HTAC 100-200 0.03-0.15 80-160 0.03-0.12 50-120 0.03-0.10 60-140 0.03-0.12 60-140 0.03-0.15
EN-XF2
HTi5 100-250 0.03-0.15 80-220 0.03-0.12 50-180 0.03-0.10 80-200 0.03-0.12 80-200 0.03-0.15
TAC HTAC 100-200 0.04-0.15 80-160 0.04-0.12 50-120 0.04-0.10 60-140 0.04-0.12 60-140 0.04-0.15
EN-MF2
Ti5 HTi5 100-250 0.04-0.15 80-220 0.04-0.12 50-180 0.04-0.10 80-200 0.04-0.12 80-200 0.04-0.15
Tmax 100-220 0.04-0.30 80-180 0.04-0.25 50-150 0.04-0.20 60-150 0.04-0.25 60-150 0.04-0.25
EN-MF
Ti4 100-250 0.05-0.30 80-220 0.05-0.25 50-180 0.05-0.20 80-200 0.05-0.25 80-200 0.05-0.25
TiX HTiX 100-220 0.06-0.35 80-180 0.06-0.30 50-150 0.06-0.25 60-150 0.06-0.25 60-150 0.06-0.25
EN-HF3
Ti6 100-250 0.06-0.35 80-220 0.06-0.30 50-180 0.06-0.25 80-200 0.06-0.25 80-200 0.06-0.25
Tmax 100-220 0.08-0.40 80-180 0.08-0.35 50-150 0.08-0.30 60-150 0.08-0.30 60-150 0.08-0.30
TAC 100-200 0.08-0.40 80-160 0.08-0.35 50-140 0.08-0.30 60-140 0.08-0.30 60-140 0.08-0.30
EN-HF
Ti4 100-250 0.08-0.40 80-220 0.08-0.35 50-180 0.08-0.30 80-200 0.08-0.30 80-200 0.08-0.30
Ti5 HTi5 100-280 0.08-0.40 80-250 0.08-0.35 50-200 0.08-0.30 80-220 0.08-0.30 80-220 0.08-0.30
ISO-Line
CERMET
FN-X8 CTA 100-350 0.01-0.12 80-300 0.01-0.10 70-250 0.01-0.08 80-250 0.01-0.12 80-250 0.01-0.12
CERMET
CN6 100-300 0.01-0.12 80-250 0.01-0.10 70-200 0.01-0.08
ENP-KX CT7 HCT7 100-350 0.03-0.20 80-300 0.03-0.18 70-250 0.03-0.15 80-250 0.03-0.18 80-250 0.03-0.18
CERMET CN6 100-300 0.03-0.20 80-250 0.03-0.18 70-200 0.03-0.15
EN-KM CT7 HCT7 100-350 0.03-0.25 80-300 0.03-0.20 70-250 0.03-0.18 80-250 0.03-0.20 80-250 0.03-0.20
CERMET CN6 100-300 0.03-0.25 80-250 0.03-0.20 70-200 0.03-0.18

7.64
