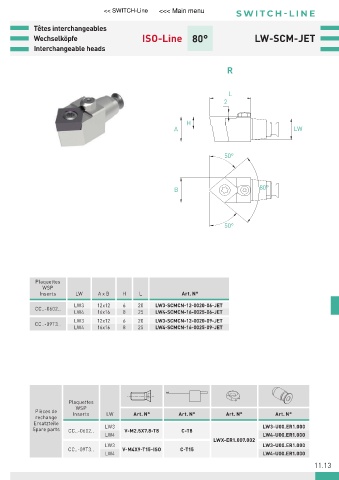

<< SWITCH-Line <<< Main menu SW IT CH-LINE

Têtes interchangeables
Wechselköpfe ISO-Line 80° LW-SCM-JET
Interchangeable heads

R

L
2

H
A LW

50°

B 80°

50°

Plaquettes
WSP
Inserts LW A x B H L Art. N°
LW3 12x12 6 20 LW3-SCMCN-12-0020-06-JET
CC..-0602..
LW4 16x16 8 25 LW4-SCMCN-16-0025-06-JET
LW3 12x12 6 20 LW3-SCMCN-12-0020-09-JET
CC..-09T3..
LW4 16x16 8 25 LW4-SCMCN-16-0025-09-JET

Plaquettes
WSP
Pièces de
Inserts LW Art. N° Art. N° Art. N° Art. N°
rechange
Ersatzteile
Spare parts CC..-0602.. LW3 V-M2.5X7.8-T8 C-T8 LW3-U00.ER1.000
LW4 LW4-U00.ER1.000
LWX-ER1.007.002
LW3 LW3-U00.ER1.000
CC..-09T3.. V-M4X9-T15-ISO C-T15
LW4 LW4-U00.ER1.000
11.13
