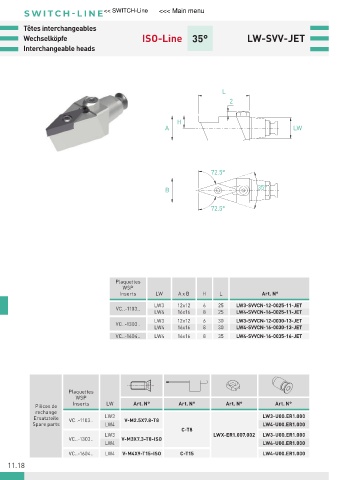

Page 472 - 21-036 APPLITEC catalogue.indb

SW IT CH-LINE << SWITCH-Line <<< Main menu

Têtes interchangeables
Wechselköpfe ISO-Line 35° LW-SVV-JET
Interchangeable heads

L
2

H
A LW

72.5°

B 35°

72.5°

Plaquettes
WSP
Inserts LW A x B H L Art. N°
LW3 12x12 6 25 LW3-SVVCN-12-0025-11-JET
VC..-1103..
LW4 16x16 8 25 LW4-SVVCN-16-0025-11-JET
LW3 12x12 6 30 LW3-SVVCN-12-0030-13-JET
VC..-1303..
LW4 16x16 8 30 LW4-SVVCN-16-0030-13-JET
VC..-1604.. LW4 16x16 8 35 LW4-SVVCN-16-0035-16-JET

Plaquettes
WSP
Inserts LW Art. N° Art. N° Art. N° Art. N°
Pièces de
rechange
LW3 LW3-U00.ER1.000
Ersatzteile VC..-1103.. V-M2.5X7.8-T8
Spare parts LW4 LW4-U00.ER1.000
C-T8
LW3 LWX-ER1.007.002 LW3-U00.ER1.000
VC..-1303.. V-M3X7.3-T8-ISO
LW4 LW4-U00.ER1.000
VC..-1604.. LW4 V-M4X9-T15-ISO C-T15 LW4-U00.ER1.000
11.18
