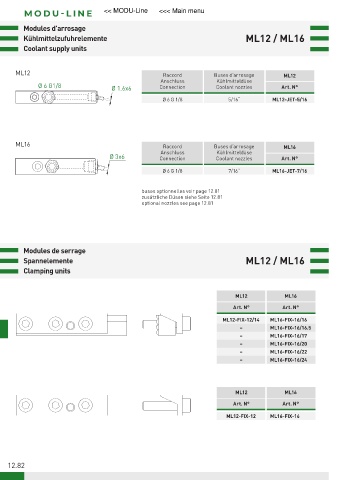

Page 558 - 21-036 APPLITEC catalogue.indb

MODU-LINE << MODU-Line <<< Main menu

Modules d’arrosage
Kühlmittelzufuhrelemente ML12 / ML16
Coolant supply units

ML12
Raccord Buses d’arrosage ML12
Anschluss Kühlmitteldüse
Ø 6 G1/8 Ø 1.6x6 Connection Coolant nozzles Art. N°
Ø 6 G 1/8 5/16“ ML12-JET-5/16

ML16 Raccord Buses d’arrosage ML16
Anschluss Kühlmitteldüse
Ø 3x6 Connection Coolant nozzles Art. N°
Ø 6 G 1/8 7/16“ ML16-JET-7/16

buses optionnelles voir page 12.81
zusätzliche Düsen siehe Seite 12.81
optional nozzles see page 12.81

Modules de serrage
Spannelemente ML12 / ML16
Clamping units

ML12 ML16
Art. N° Art. N°

ML12-FIX-12/14 ML16-FIX-16/16
– ML16-FIX-16/16.5
– ML16-FIX-16/17
– ML16-FIX-16/20
– ML16-FIX-16/22
– ML16-FIX-16/24

ML12 ML16
Art. N° Art. N°
ML12-FIX-12 ML16-FIX-16

12.82
