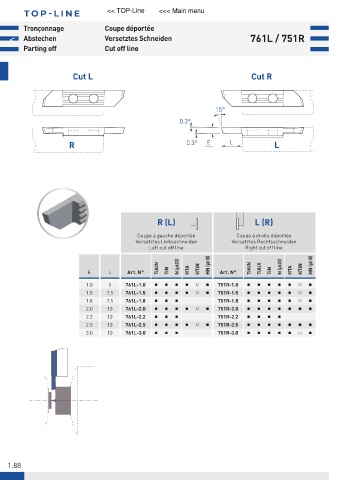

Page 92 - 21-036 APPLITEC catalogue.indb

T OP -LINE << TOP-Line <<< Main menu

Tronçonnage Coupe déportée
< Abstechen Versetztes Schneiden 761L / 751R
Parting off Cut off line

Cut L Cut R

15°
0.3°

R 0.3° E L L

R (L) L (R)
Coupe à gauche déportée Coupe à droite déportée
Versetztes Linksschneiden Versetztes Rechtsschneiden
Left cut off line Right cut off line

TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX N (μk20) HTA HTiN HN (μk10)
E L Art. N° TiN Art. N° TiN

1.0 5 761L-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751R-1.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.5 7.5 761L-1.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751R-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
1.8 7.5 761L-1.8 Ŷ Ŷ Ŷ 751R-1.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 10 761L-2.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751R-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.2 10 761L-2.2 Ŷ Ŷ Ŷ 751R-2.2 Ŷ Ŷ Ŷ Ŷ
2.5 10 761L-2.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 751R-2.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
3.0 10 761L-3.0 Ŷ Ŷ Ŷ 751R-3.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ

1.88
