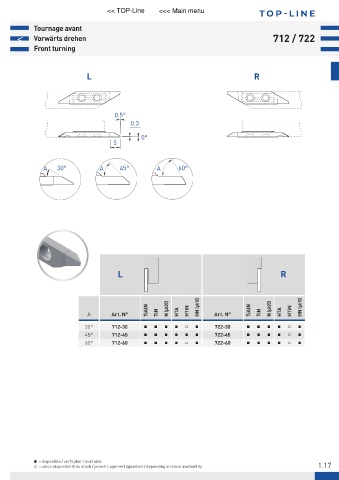

P. 21
<< TOP-Line <<< Main menu T OP -LINE
Tournage avant
< Vorwärts drehen 712 / 722
Front turning
L R
0.5°
0.3
0°
5
A 30° A 45° A 60°
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
A Art. N° TiN Art. N° TiN
30° 712-30 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 722-30 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
45° 712-45 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 722-45 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
60° 712-60 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 722-60 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
Ŷ = disponible / verfügbar / available
1.17
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
