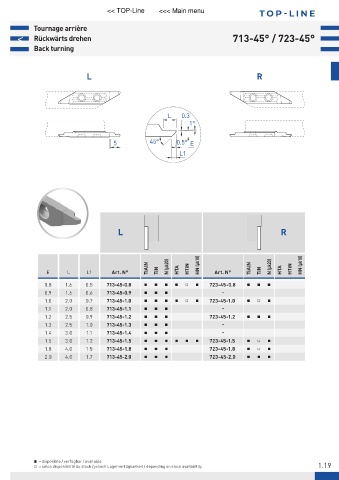

Page 23 - 21-036 APPLITEC catalogue.indb

<< TOP-Line <<< Main menu T OP -LINE

Tournage arrière
< Rückwärts drehen 713-45° / 723-45°
Back turning

L R

L 0.3
1°

5 45° 0.5° E
L1

L R

TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
E L L1 Art. N° TiN Art. N° TiN

0.8 1.6 0.5 713-45-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 723-45-0.8 Ŷ Ŷ Ŷ
0.9 1.6 0.6 713-45-0.9 Ŷ Ŷ Ŷ -
1.0 2.0 0.7 713-45-1.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 723-45-1.0 Ŷ Ƒ Ŷ
1.1 2.0 0.8 713-45-1.1 Ŷ Ŷ Ŷ -
1.2 2.5 0.9 713-45-1.2 Ŷ Ŷ Ŷ 723-45-1.2 Ŷ Ŷ Ŷ
1.3 2.5 1.0 713-45-1.3 Ŷ Ŷ Ŷ -
1.4 3.0 1.1 713-45-1.4 Ŷ Ŷ Ŷ -
1.5 3.0 1.2 713-45-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 723-45-1.5 Ŷ Ƒ Ŷ
1.8 4.0 1.5 713-45-1.8 Ŷ Ŷ Ŷ 723-45-1.8 Ŷ Ƒ Ŷ
2.0 4.0 1.7 713-45-2.0 Ŷ Ŷ Ŷ 723-45-2.0 Ŷ Ŷ Ŷ

Ŷ = disponible / verfügbar / available
1.19
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
