<< TOP-Line <<< Main menu T OP -LINE

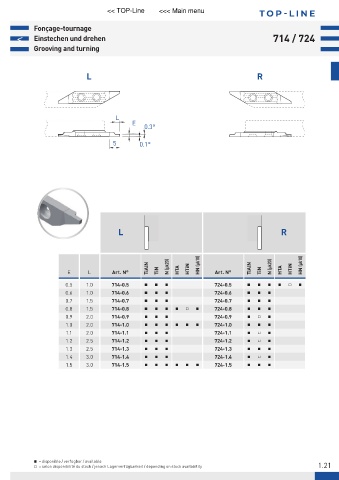

Fonçage-tournage
< Einstechen und drehen 714 / 724
Grooving and turning
L R
L
E
0.3°
5 0.1°
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
E L Art. N° TiN Art. N° TiN
0.5 1.0 714-0.5 Ŷ Ŷ Ŷ 724-0.5 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
0.6 1.0 714-0.6 Ŷ Ŷ Ŷ 724-0.6 Ŷ Ŷ Ŷ
0.7 1.5 714-0.7 Ŷ Ŷ Ŷ 724-0.7 Ŷ Ŷ Ŷ
0.8 1.5 714-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 724-0.8 Ŷ Ŷ Ŷ
0.9 2.0 714-0.9 Ŷ Ŷ Ŷ 724-0.9 Ŷ Ƒ Ŷ
1.0 2.0 714-1.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 724-1.0 Ŷ Ŷ Ŷ
1.1 2.0 714-1.1 Ŷ Ŷ Ŷ 724-1.1 Ŷ Ƒ Ŷ
1.2 2.5 714-1.2 Ŷ Ŷ Ŷ 724-1.2 Ŷ Ƒ Ŷ
1.3 2.5 714-1.3 Ŷ Ŷ Ŷ 724-1.3 Ŷ Ŷ Ŷ
1.4 3.0 714-1.4 Ŷ Ŷ Ŷ 724-1.4 Ŷ Ƒ Ŷ
1.5 3.0 714-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 724-1.5 Ŷ Ŷ Ŷ
Ŷ = disponible / verfügbar / available
1.21
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
