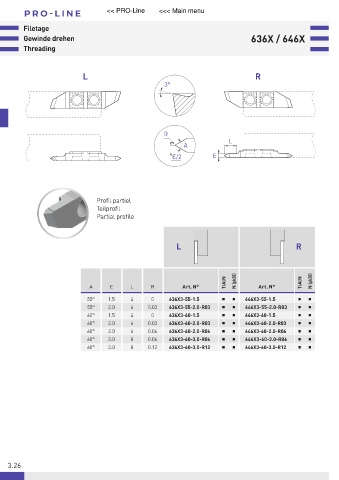

Filetage
Gewinde drehen 636X / 646X
Threading

L R
3°

R
L
A
E/2 E

Profil partiel
Teilprofil
Partial profile

L R

TiAlN N (μk20) TiAlN N (μk20)
A E L R Art. N° Art. N°
55° 1.5 4 0 636X3-55-1.5 Ŷ Ŷ 646X3-55-1.5 Ŷ Ŷ
55° 2.0 6 0.03 636X3-55-2.0-R03 Ŷ Ŷ 646X3-55-2.0-R03 Ŷ Ŷ
60° 1.5 4 0 636X3-60-1.5 Ŷ Ŷ 646X3-60-1.5 Ŷ Ŷ
60° 2.0 6 0.03 636X3-60-2.0-R03 Ŷ Ŷ 646X3-60-2.0-R03 Ŷ Ŷ
60° 2.0 6 0.06 636X3-60-2.0-R06 Ŷ Ŷ 646X3-60-2.0-R06 Ŷ Ŷ
60° 3.0 8 0.06 636X3-60-3.0-R06 Ŷ Ŷ 646X3-60-3.0-R06 Ŷ Ŷ
60° 3.0 8 0.12 636X3-60-3.0-R12 Ŷ Ŷ 646X3-60-3.0-R12 Ŷ Ŷ

3.26
