<< ECO-Line <<< Main menu EC O-LINE

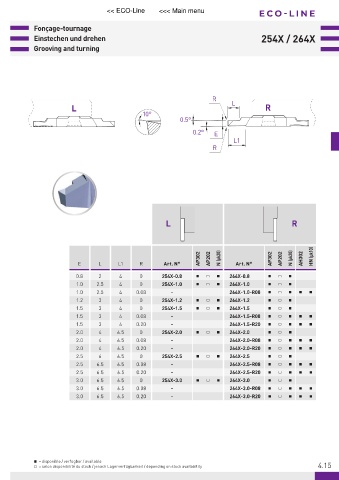

Fonçage-tournage
Einstechen und drehen 254X / 264X
Grooving and turning

R
L
L R
10°
0.5°
0.2° E
L1
R

L R

AP302 AP202 N (μk20) AP302 AP202 N (μk20) AH302 HN (μk10)
E L L1 R Art. N° Art. N°
0.8 2 4 0 254X-0.8 Ŷ Ƒ Ŷ 264X-0.8 Ŷ Ƒ Ŷ
1.0 2.5 4 0 254X-1.0 Ŷ Ƒ Ŷ 264X-1.0 Ŷ Ƒ Ŷ
1.0 2.5 4 0.08 - 264X-1.0-R08 Ŷ Ƒ Ŷ Ŷ Ŷ
1.2 3 4 0 254X-1.2 Ŷ Ƒ Ŷ 264X-1.2 Ŷ Ƒ Ŷ
1.5 3 4 0 254X-1.5 Ŷ Ƒ Ŷ 264X-1.5 Ŷ Ƒ Ŷ
1.5 3 4 0.08 - 264X-1.5-R08 Ŷ Ƒ Ŷ Ŷ Ŷ
1.5 3 4 0.20 - 264X-1.5-R20 Ŷ Ƒ Ŷ Ŷ Ŷ
2.0 4 6.5 0 254X-2.0 Ŷ Ƒ Ŷ 264X-2.0 Ŷ Ƒ Ŷ
2.0 4 6.5 0.08 - 264X-2.0-R08 Ŷ Ƒ Ŷ Ŷ Ŷ
2.0 4 6.5 0.20 - 264X-2.0-R20 Ŷ Ƒ Ŷ Ŷ Ŷ
2.5 6 6.5 0 254X-2.5 Ŷ Ƒ Ŷ 264X-2.5 Ŷ Ƒ Ŷ
2.5 6.5 6.5 0.08 - 264X-2.5-R08 Ŷ Ƒ Ŷ Ŷ Ŷ
2.5 6.5 6.5 0.20 - 264X-2.5-R20 Ŷ Ƒ Ŷ Ŷ Ŷ
3.0 6.5 6.5 0 254X-3.0 Ŷ Ƒ Ŷ 264X-3.0 Ŷ Ƒ Ŷ
3.0 6.5 6.5 0.08 - 264X-3.0-R08 Ŷ Ƒ Ŷ Ŷ Ŷ
3.0 6.5 6.5 0.20 - 264X-3.0-R20 Ŷ Ƒ Ŷ Ŷ Ŷ

Ŷ = disponible / verfügbar / available
4.15
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
