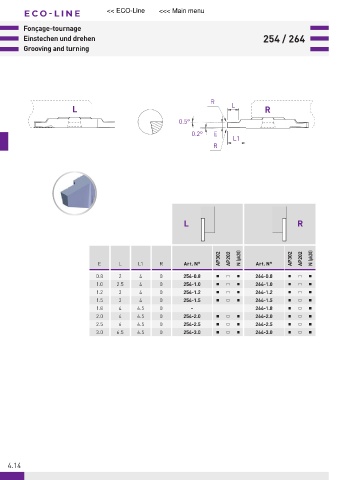

Page 258 - 21-036 APPLITEC catalogue.indb

EC O-LINE << ECO-Line <<< Main menu

Fonçage-tournage
Einstechen und drehen 254 / 264
Grooving and turning

R
L L R
0.5°

0.2° E
L1
R

L R

AP302 AP202 N (μk20) AP302 AP202 N (μk20)
E L L1 R Art. N° Art. N°
0.8 2 4 0 254-0.8 Ŷ Ƒ Ŷ 264-0.8 Ŷ Ƒ Ŷ
1.0 2.5 4 0 254-1.0 Ŷ Ƒ Ŷ 264-1.0 Ŷ Ƒ Ŷ
1.2 3 4 0 254-1.2 Ŷ Ƒ Ŷ 264-1.2 Ŷ Ƒ Ŷ
1.5 3 4 0 254-1.5 Ŷ Ƒ Ŷ 264-1.5 Ŷ Ƒ Ŷ
1.8 4 6.5 0 - 264-1.8 Ŷ Ƒ Ŷ
2.0 4 6.5 0 254-2.0 Ŷ Ƒ Ŷ 264-2.0 Ŷ Ƒ Ŷ
2.5 6 6.5 0 254-2.5 Ŷ Ƒ Ŷ 264-2.5 Ŷ Ƒ Ŷ
3.0 6.5 6.5 0 254-3.0 Ŷ Ƒ Ŷ 264-3.0 Ŷ Ƒ Ŷ

4.14
