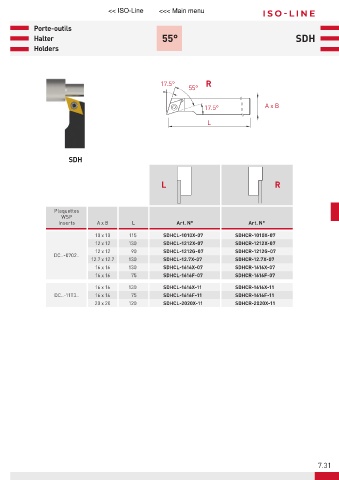

Page 319 - 21-036 APPLITEC catalogue.indb

<< ISO-Line <<< Main menu ISO-LINE

Porte-outils
Halter 55° SDH
Holders

17.5° R
55°

17.5° A x B

L

SDH

L R

Plaquettes
WSP
Inserts A x B L Art. N° Art. N°
10 x 10 115 SDHCL-1010X-07 SDHCR-1010X-07
12 x 12 130 SDHCL-1212X-07 SDHCR-1212X-07
12 x 12 90 SDHCL-1212G-07 SDHCR-1212G-07
DC..-0702..
12.7 x 12.7 130 SDHCL-12.7X-07 SDHCR-12.7X-07
16 x 16 130 SDHCL-1616X-07 SDHCR-1616X-07
16 x 16 75 SDHCL-1616F-07 SDHCR-1616F-07
16 x 16 130 SDHCL-1616X-11 SDHCR-1616X-11
DC..-11T3.. 16 x 16 75 SDHCL-1616F-11 SDHCR-1616F-11
20 x 20 120 SDHCL-2020X-11 SDHCR-2020X-11

7.31
