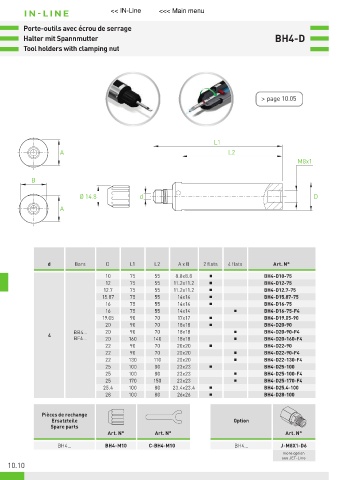

Page 416 - 21-036 APPLITEC catalogue.indb

IN-LINE << IN-Line <<< Main menu

Porte-outils avec écrou de serrage
Halter mit Spannmutter BH4-D
Tool holders with clamping nut

> page 10.05

L1
A L2
M8x1

B
Ø 14.8 d D

A

d Bars D L1 L2 A x B 2 flats 4 flats Art. N°
10 75 55 8.8x8.8 Ŷ BH4-D10-75
12 75 55 11.2x11.2 Ŷ BH4-D12-75
12.7 75 55 11.2x11.2 Ŷ BH4-D12.7-75
15.87 75 55 14x14 Ŷ BH4-D15.87-75
16 75 55 14x14 Ŷ BH4-D16-75
16 75 55 14x14 Ŷ BH4-D16-75-F4
19.05 90 70 17x17 Ŷ BH4-D19.05-90
20 90 70 18x18 Ŷ BH4-D20-90
BB4… 20 90 70 18x18 Ŷ BH4-D20-90-F4
4
BF4… 20 160 140 18x18 Ŷ BH4-D20-160-F4
22 90 70 20x20 Ŷ BH4-D22-90
22 90 70 20x20 Ŷ BH4-D22-90-F4
22 130 110 20x20 Ŷ BH4-D22-130-F4
25 100 80 23x23 Ŷ BH4-D25-100
25 100 80 23x23 Ŷ BH4-D25-100-F4
25 170 150 23x23 Ŷ BH4-D25-170-F4
25.4 100 80 23.4x23.4 Ŷ BH4-D25.4-100
28 100 80 26x26 Ŷ BH4-D28-100

Pièces de rechange
Ersatzteile Option
Spare parts
Art. N° Art. N° Art. N°
BH4… BH4-M10 C-BH4-M10 BH4… J-M8X1-D6
more option
see JET-Line
10.10
