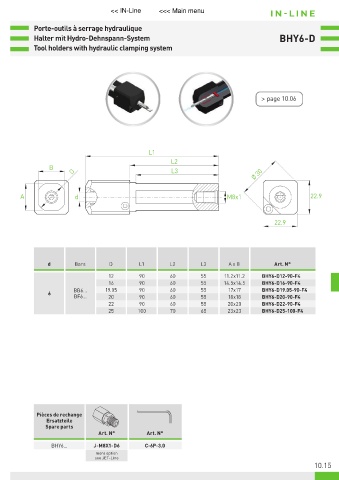

Porte-outils à serrage hydraulique
Halter mit Hydro-Dehnspann-System BHY6-D
Tool holders with hydraulic clamping system
> page 10.06
L1
L2
B
D L3 Ø 30
A d M8x1 22.9
22.9
d Bars D L1 L2 L3 A x B Art. N°
12 90 60 55 11.2x11.2 BHY6-D12-90-F4
16 90 60 55 14.5x14.5 BHY6-D16-90-F4
BB6… 19.05 90 60 55 17x17 BHY6-D19.05-90-F4
6
BF6… 20 90 60 55 18x18 BHY6-D20-90-F4
22 90 60 55 20x20 BHY6-D22-90-F4
25 100 70 65 23x23 BHY6-D25-100-F4
Pièces de rechange
Ersatzteile
Spare parts
Art. N° Art. N°
BHY6… J-M8X1-D6 C-6P-3.0
more option
see JET-Line
