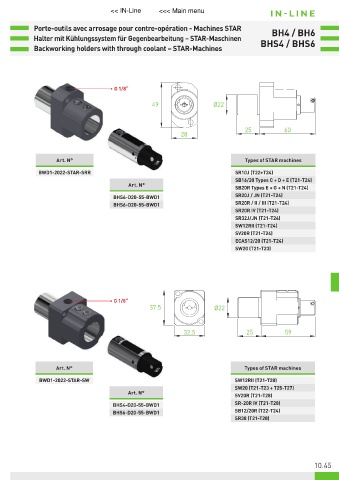

Porte-outils avec arrosage pour contre-opération - Machines STAR
BH4 / BH6
Halter mit Kühlungssystem für Gegenbearbeitung – STAR-Maschinen
BHS4 / BHS6
Backworking holders with through coolant – STAR-Machines

G 1/8“

49 Ø22

25 60
28

Art. N° Types of STAR machines
BWD1-2022-STAR-SRR SR10J (T22+T24)
SB16/20 Types C + D + E (T21-T24)
Art. N°
SB20R Types E + G + N (T21-T24)
SR20J / JN (T21-T24)
BHS4-D20-55-BWD1
BHS6-D20-55-BWD1 SR20R / II / III (T21-T24)
SR20R IV (T21-T24)
SR32J/JN (T21-T24)
SW12RII (T21-T24)
SV20R (T21-T24)
ECAS12/20 (T21-T24)
SW20 (T21-T23)

G 1/8“
37.5 Ø22

32.5 25 59

Art. N° Types of STAR machines
BWD1-2022-STAR-SW SW12RII (T21-T28)
SW20 (T21-T23 + T25-T27)
Art. N°
SV20R (T21-T28)
SR-20R IV (T21-T28)
BHS4-D20-55-BWD1
SB12/20R (T22-T24)
BHS6-D20-55-BWD1
SR38 (T21-T28)
