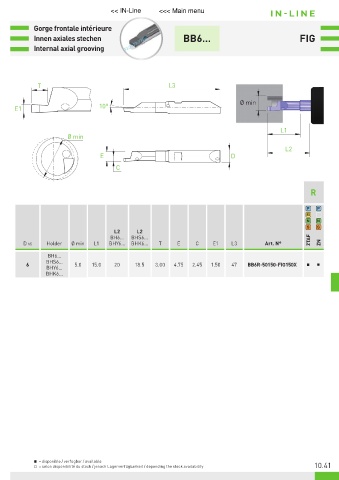

Gorge frontale intérieure
Innen axiales stechen BB6… FIG
Internal axial grooving
T L3
Ø min
E1 10°
L1
Ø min
L2
E D
C
R
P P
M
N N
S S
L2 L2
BH6… BHS6… ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… T E C E1 L3 Art. N° ZN
BH6…
BHS6…
6 5.0 15.0 20 18.5 3.00 4.75 2.45 1.50 47 BB6R-50150-FIG150X Ŷ Ŷ
BHY6…
BHK6…
Ŷ = disponible / verfügbar / available
10.41
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending the stock availability
