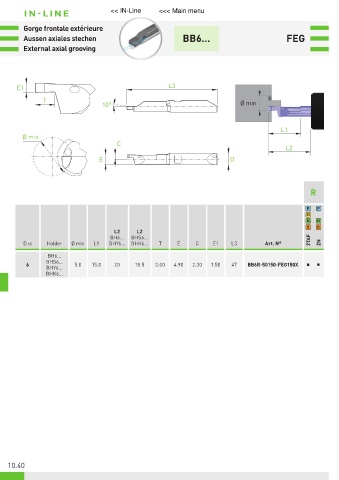

Gorge frontale extérieure
Aussen axiales stechen BB6… FEG
External axial grooving
E1 L3
T
10° Ø min
L1
Ø min
C
L2
E D
R
P P
M
N N
S S
L2 L2
BH6… BHS6… ZTAF
D h5 Holder Ø min L1 BHY6… BHK6… T E C E1 L3 Art. N° ZN
BH6…
BHS6…
6 5.0 15.0 20 18.5 3.00 4.90 2.30 1.50 47 BB6R-50150-FEG150X Ŷ Ŷ
BHY6…
BHK6…
10.40
