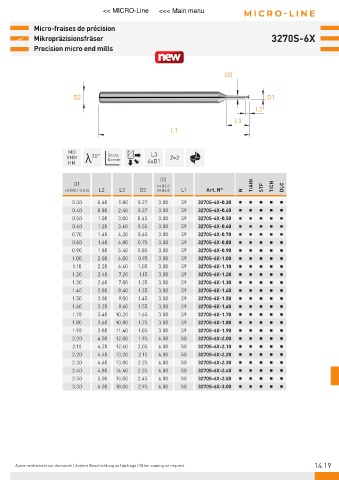

Page 603 - 21-036 APPLITEC catalogue.indb

<< MICRO-Line <<< Main menu MICRO-LINE

Micro-fraises de précision
< Mikropräzisionsfräser 3270S-6X
Precision micro end mills

D3

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Sharp Z=2
Corner
HM 6xD1
D2
D1
h4 Ø3.0 TiAlN STF TiCN DLC
+0.005 / -0.010 L2 L3 D3 h5 Ø6.0 L1 Art. N° N
0.30 0.60 1.80 0.27 3.00 39 3270S-6X-0.30
0.40 0.80 2.40 0.37 3.00 39 3270S-6X-0.40
0.50 1.00 3.00 0.45 3.00 39 3270S-6X-0.50
0.60 1.20 3.60 0.55 3.00 39 3270S-6X-0.60
0.70 1.40 4.20 0.65 3.00 39 3270S-6X-0.70
0.80 1.60 4.80 0.75 3.00 39 3270S-6X-0.80
0.90 1.80 5.40 0.85 3.00 39 3270S-6X-0.90
1.00 2.00 6.00 0.95 3.00 39 3270S-6X-1.00
1.10 2.20 6.60 1.05 3.00 39 3270S-6X-1.10
1.20 2.40 7.20 1.15 3.00 39 3270S-6X-1.20
1.30 2.60 7.80 1.25 3.00 39 3270S-6X-1.30
1.40 2.80 8.40 1.35 3.00 39 3270S-6X-1.40
1.50 3.00 9.00 1.45 3.00 39 3270S-6X-1.50
1.60 3.20 9.60 1.55 3.00 39 3270S-6X-1.60
1.70 3.40 10.20 1.65 3.00 39 3270S-6X-1.70
1.80 3.60 10.80 1.75 3.00 39 3270S-6X-1.80
1.90 3.80 11.40 1.85 3.00 39 3270S-6X-1.90
2.00 4.00 12.00 1.95 6.00 50 3270S-6X-2.00
2.10 4.20 12.60 2.05 6.00 50 3270S-6X-2.10
2.20 4.40 13.20 2.15 6.00 50 3270S-6X-2.20
2.30 4.60 13.80 2.25 6.00 50 3270S-6X-2.30
2.40 4.80 14.40 2.35 6.00 50 3270S-6X-2.40
2.50 5.00 15.00 2.45 6.00 50 3270S-6X-2.50
3.00 6.00 18.00 2.95 6.00 50 3270S-6X-3.00

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 14.19
