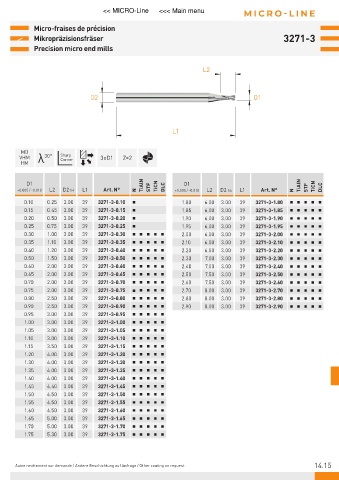

Page 599 - 21-036 APPLITEC catalogue.indb

<< MICRO-Line <<< Main menu MICRO-LINE

Micro-fraises de précision
< Mikropräzisionsfräser 3271-3
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 3xD1 Z=2
Corner
HM
D1 TiAlN TiCN D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF DLC +0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.10 0.25 3.00 39 3271-3-0.10 1.80 6.00 3.00 39 3271-3-1.80
0.15 0.45 3.00 39 3271-3-0.15 1.85 6.00 3.00 39 3271-3-1.85
0.20 0.50 3.00 39 3271-3-0.20 1.90 6.00 3.00 39 3271-3-1.90
0.25 0.75 3.00 39 3271-3-0.25 1.95 6.00 3.00 39 3271-3-1.95
0.30 1.00 3.00 39 3271-3-0.30 2.00 6.00 3.00 39 3271-3-2.00
0.35 1.10 3.00 39 3271-3-0.35 2.10 6.00 3.00 39 3271-3-2.10
0.40 1.20 3.00 39 3271-3-0.40 2.20 6.50 3.00 39 3271-3-2.20
0.50 1.50 3.00 39 3271-3-0.50 2.30 7.00 3.00 39 3271-3-2.30
0.60 2.00 3.00 39 3271-3-0.60 2.40 7.00 3.00 39 3271-3-2.40
0.65 2.00 3.00 39 3271-3-0.65 2.50 7.50 3.00 39 3271-3-2.50
0.70 2.00 3.00 39 3271-3-0.70 2.60 7.50 3.00 39 3271-3-2.60
0.75 2.00 3.00 39 3271-3-0.75 2.70 8.00 3.00 39 3271-3-2.70
0.80 2.50 3.00 39 3271-3-0.80 2.80 8.00 3.00 39 3271-3-2.80
0.90 2.50 3.00 39 3271-3-0.90 2.90 8.00 3.00 39 3271-3-2.90
0.95 3.00 3.00 39 3271-3-0.95
1.00 3.00 3.00 39 3271-3-1.00
1.05 3.00 3.00 39 3271-3-1.05
1.10 3.00 3.00 39 3271-3-1.10
1.15 3.50 3.00 39 3271-3-1.15
1.20 4.00 3.00 39 3271-3-1.20
1.30 4.00 3.00 39 3271-3-1.30
1.35 4.00 3.00 39 3271-3-1.35
1.40 4.00 3.00 39 3271-3-1.40
1.45 4.40 3.00 39 3271-3-1.45
1.50 4.50 3.00 39 3271-3-1.50
1.55 4.50 3.00 39 3271-3-1.55
1.60 4.50 3.00 39 3271-3-1.60
1.65 5.00 3.00 39 3271-3-1.65
1.70 5.00 3.00 39 3271-3-1.70
1.75 5.30 3.00 39 3271-3-1.75

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 14.15
