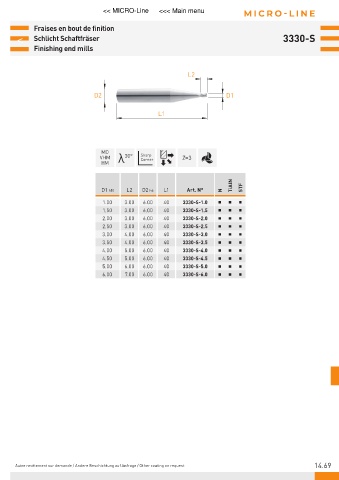

Fraises en bout de finition
< Schlicht Schaftfräser 3330-S
Finishing end mills
L2
D2 D1
L1
MD
VHM λ 30° Sharp Z=3
Corner
HM
TiAlN STF
D1 h10 L2 D2 h6 L1 Art. N° N
1.00 3.00 6.00 40 3330-S-1.0
1.50 3.00 6.00 40 3330-S-1.5
2.00 3.00 6.00 40 3330-S-2.0
2.50 3.00 6.00 40 3330-S-2.5
3.00 4.00 6.00 40 3330-S-3.0
3.50 4.00 6.00 40 3330-S-3.5
4.00 5.00 6.00 40 3330-S-4.0
4.50 5.00 6.00 40 3330-S-4.5
5.00 6.00 6.00 40 3330-S-5.0
6.00 7.00 6.00 40 3330-S-6.0
Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 14.69
