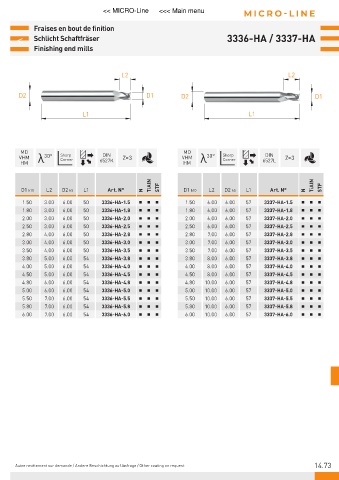

P. 657
<< MICRO-Line <<< Main menu MICRO-LINE
Fraises en bout de finition
< Schlicht Schaftfräser 3336-HA / 3337-HA
Finishing end mills
L2 L2
D2 D1 D2 D1
L1 L1
MD MD
DIN
DIN
VHM λ 30° Sharp 6527K Z=3 VHM λ 30° Sharp 6527L Z=3
Corner
Corner
HM HM
TiAlN STF TiAlN STF
D1 h10 L2 D2 h5 L1 Art. N° N D1 h10 L2 D2 h5 L1 Art. N° N
1.50 3.00 6.00 50 3336-HA-1.5 1.50 6.00 6.00 57 3337-HA-1.5
1.80 3.00 6.00 50 3336-HA-1.8 1.80 6.00 6.00 57 3337-HA-1.8
2.00 3.00 6.00 50 3336-HA-2.0 2.00 6.00 6.00 57 3337-HA-2.0
2.50 3.00 6.00 50 3336-HA-2.5 2.50 6.00 6.00 57 3337-HA-2.5
2.80 4.00 6.00 50 3336-HA-2.8 2.80 7.00 6.00 57 3337-HA-2.8
3.00 4.00 6.00 50 3336-HA-3.0 3.00 7.00 6.00 57 3337-HA-3.0
3.50 4.00 6.00 50 3336-HA-3.5 3.50 7.00 6.00 57 3337-HA-3.5
3.80 5.00 6.00 54 3336-HA-3.8 3.80 8.00 6.00 57 3337-HA-3.8
4.00 5.00 6.00 54 3336-HA-4.0 4.00 8.00 6.00 57 3337-HA-4.0
4.50 5.00 6.00 54 3336-HA-4.5 4.50 8.00 6.00 57 3337-HA-4.5
4.80 6.00 6.00 54 3336-HA-4.8 4.80 10.00 6.00 57 3337-HA-4.8
5.00 6.00 6.00 54 3336-HA-5.0 5.00 10.00 6.00 57 3337-HA-5.0
5.50 7.00 6.00 54 3336-HA-5.5 5.50 10.00 6.00 57 3337-HA-5.5
5.80 7.00 6.00 54 3336-HA-5.8 5.80 10.00 6.00 57 3337-HA-5.8
6.00 7.00 6.00 54 3336-HA-6.0 6.00 10.00 6.00 57 3337-HA-6.0
Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 14.73
