JET -LINE << JET-Line <<< Main menu

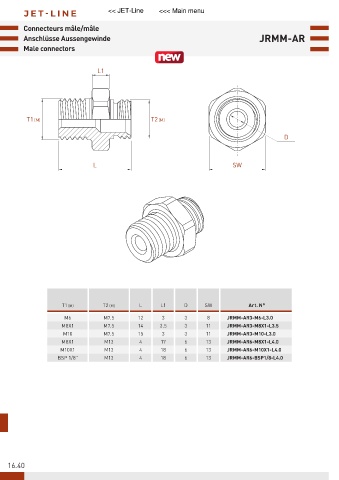

Connecteurs mâle/mâle
Anschlüsse Aussengewinde JRMM-AR
Male connectors
L1
T1 (M) T2 (M)
D
L SW
T1 (M) T2 (M) L L1 D SW Art. N°
M6 M7.5 12 3 3 8 JRMM-AR3-M6-L3.0
M8X1 M7.5 14 3.5 3 11 JRMM-AR3-M8X1-L3.5
M10 M7.5 15 3 3 11 JRMM-AR3-M10-L3.0
M8X1 M13 4 17 6 13 JRMM-AR6-M8X1-L4.0
M10X1 M13 4 18 6 13 JRMM-AR6-M10X1-L4.0
BSP 1/8" M13 4 18 6 13 JRMM-AR6-BSP1/8-L4.0
16.40
