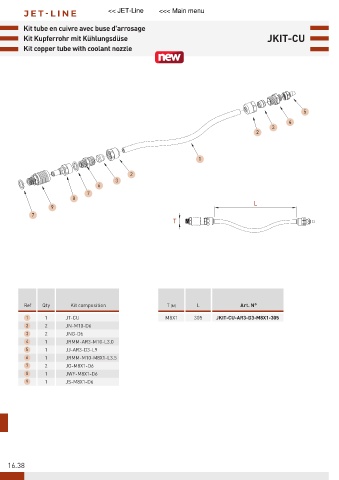

Kit tube en cuivre avec buse d'arrosage
Kit Kupferrohr mit Kühlungsdüse JKIT-CU
Kit copper tube with coolant nozzle

5
4
3
2

1

2
3
6
7
8
L
9
7
T

Ref Qty Kit composition T (M) L Art. N°
1 1 JT-CU M8X1 305 JKIT-CU-AR3-D3-M8X1-305
2 2 JN-M10-D6
3 2 JNG-D6
4 1 JRMM-AR3-M10-L3.0
5 1 JJ-AR3-D3-L9
6 1 JRMM-M10-M8X1-L3.5
7 2 JO-M8X1-D6
8 1 JWF-M8X1-D6
9 1 JS-M8X1-D6

16.38
