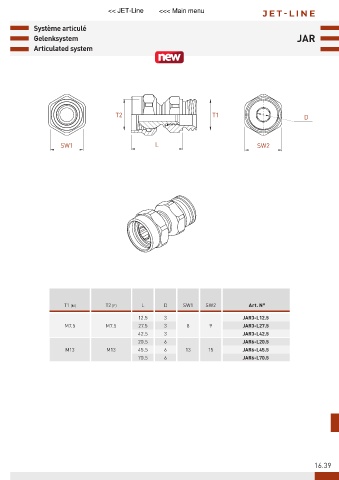

Système articulé
Gelenksystem JAR
Articulated system
T2 T1 D
SW1 L SW2
T1 (M) T2 (F) L D SW1 SW2 Art. N°
12.5 3 JAR3-L12.5
M7.5 M7.5 27.5 3 8 9 JAR3-L27.5
42.5 3 JAR3-L42.5
20.5 6 JAR6-L20.5
M13 M13 45.5 6 13 15 JAR6-L45.5
70.5 6 JAR6-L70.5
16.39
