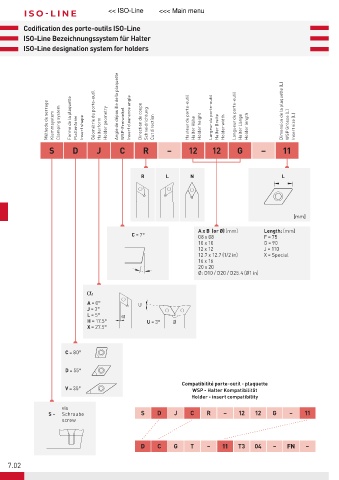

Codification des porte-outils ISO-Line
ISO-Line Bezeichnungssystem für Halter
ISO-Line designation system for holders

Méthode de serrage Klemmsystem Clamping system Forme de la plaquette Plattenform Insert shape Géométrie du porte-outil Halterform Holder geometry Angle de dépouille de la plaquette WSP-Freiwinkel Insert clearance angle Direction de coupe Schneidrichtung Cut direction Hauteur du porte-outil Halter Höhe Holder height Largeu

S D J C R – 12 12 G – 11

R L N L

[mm]
A x B (or Ø) [mm] Length: [mm]
C = 7°
08 x 08 F = 75
10 x 10 G = 90
12 x 12 J = 110
12.7 x 12.7 (1/2 in) X = Special
16 x 16
20 x 20
Ø: D10 / D20 / D25.4 (Ø1 in)

Ơ:
A = 0° U
J = 3°
L = 5° Ơ
H = 17.5° U = 3° Ø
X = 27.5°

C = 80°

D = 55°

Compatibilité porte-outil - plaquette
V = 35° WSP - Halter Kompatibilität
Holder - insert compatibility
vis
S = Schraube S D J C R – 12 12 G – 11
screw

D C G T – 11 T3 04 – FN –

7.02
