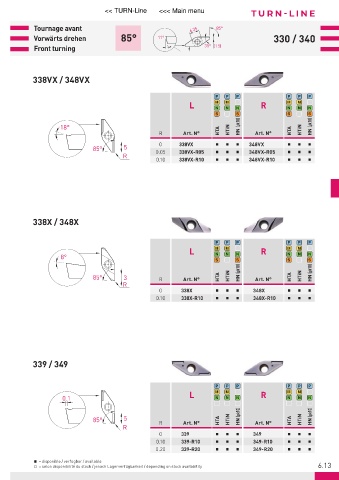

Page 287 - 21-036 APPLITEC catalogue.indb

<< TURN-Line <<< Main menu T URN-LINE

Tournage avant 6.35 85°
Vorwärts drehen 85° 11° 330 / 340
Front turning 35° (1.5)

338VX / 348VX

P P P P P P
M M M M
L N N N R N N N
S S S S

18° HTiN HN (μk10) HTiN HN (μk10)
R Art. N° HTA Art. N° HTA
0 338VX Ŷ Ŷ Ŷ 348VX Ŷ Ŷ Ŷ
85° 5 0.05 338VX-R05 Ŷ Ŷ Ŷ 348VX-R05 Ŷ Ŷ Ŷ
R
0.10 338VX-R10 Ŷ Ŷ Ŷ 348VX-R10 Ŷ Ŷ Ŷ

338X / 348X

P P P P P P
M M M M
L R
8° N N N N N N
S S S S
85° 3 R Art. N° HTA HTiN HN (μk10) Art. N° HTA HTiN HN (μk10)
R
0 338X Ŷ Ŷ Ŷ 348X Ŷ Ŷ Ŷ
0.10 338X-R10 Ŷ Ŷ Ŷ 348X-R10 Ŷ Ŷ Ŷ

339 / 349

P P P P P P
L M M R M M
0.1 N N N N N N

85° 5 HTA HTiN HN (μk10) HTA HTiN HN (μk10)
R Art. N° Art. N°
R
0 339 Ŷ Ŷ Ŷ 349 Ŷ Ŷ Ŷ
0.10 339-R10 Ŷ Ŷ Ŷ 349-R10 Ŷ Ŷ Ŷ
0.20 339-R20 Ŷ Ŷ Ŷ 349-R20 Ŷ Ŷ Ŷ
Ŷ = disponible / verfügbar / available
6.13
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
