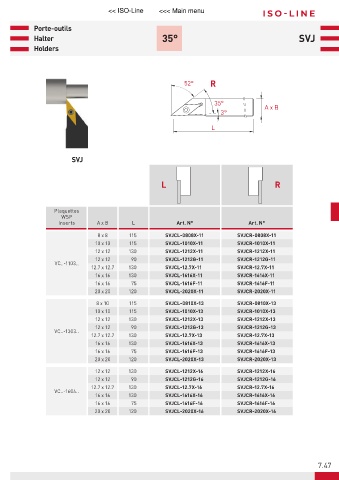

Page 335 - 21-036 APPLITEC catalogue.indb

<< ISO-Line <<< Main menu ISO-LINE

Porte-outils
Halter 35° SVJ
Holders

52° R

35°
A x B
3°

L

SVJ

L R

Plaquettes
WSP
Inserts A x B L Art. N° Art. N°
8 x 8 115 SVJCL-0808X-11 SVJCR-0808X-11
10 x 10 115 SVJCL-1010X-11 SVJCR-1010X-11
12 x 12 130 SVJCL-1212X-11 SVJCR-1212X-11
12 x 12 90 SVJCL-1212G-11 SVJCR-1212G-11
VC..-1103..
12.7 x 12.7 130 SVJCL-12.7X-11 SVJCR-12.7X-11
16 x 16 130 SVJCL-1616X-11 SVJCR-1616X-11
16 x 16 75 SVJCL-1616F-11 SVJCR-1616F-11
20 x 20 120 SVJCL-2020X-11 SVJCR-2020X-11
8 x 10 115 SVJCL-0810X-13 SVJCR-0810X-13
10 x 10 115 SVJCL-1010X-13 SVJCR-1010X-13
12 x 12 130 SVJCL-1212X-13 SVJCR-1212X-13
12 x 12 90 SVJCL-1212G-13 SVJCR-1212G-13
VC..-1303..
12.7 x 12.7 130 SVJCL-12.7X-13 SVJCR-12.7X-13
16 x 16 130 SVJCL-1616X-13 SVJCR-1616X-13
16 x 16 75 SVJCL-1616F-13 SVJCR-1616F-13
20 x 20 120 SVJCL-2020X-13 SVJCR-2020X-13
12 x 12 130 SVJCL-1212X-16 SVJCR-1212X-16
12 x 12 90 SVJCL-1212G-16 SVJCR-1212G-16
12.7 x 12.7 130 SVJCL-12.7X-16 SVJCR-12.7X-16
VC..-1604..
16 x 16 130 SVJCL-1616X-16 SVJCR-1616X-16
16 x 16 75 SVJCL-1616F-16 SVJCR-1616F-16
20 x 20 120 SVJCL-2020X-16 SVJCR-2020X-16

7.47
