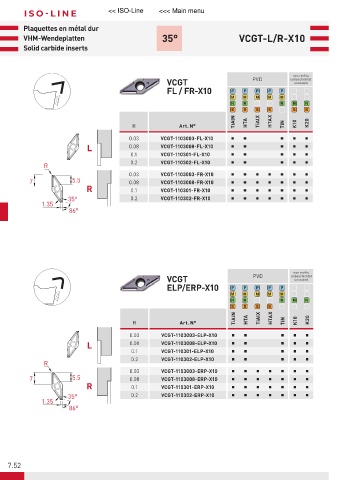

Page 340 - 21-036 APPLITEC catalogue.indb

ISO-LINE << ISO-Line <<< Main menu

Plaquettes en métal dur
VHM-Wendeplatten 35° VCGT-L/R-X10
Solid carbide inserts

non revêtu
VCGT PVD unbeschichtet
uncoated
FL / FR-X10 P P P P P
M M M M M
N N N N N
S S S S S S
TiAlN HTA TiAlX HTAX K20
R Art. N° TiN K10

0.03 VCGT-1103003-FL-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
L 0.08 VCGT-1103008-FL-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
0.1 VCGT-110301-FL-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
0.2 VCGT-110302-FL-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
R
0.03 VCGT-1103003-FR-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
7 5.5 0.08 VCGT-1103008-FR-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
R 0.1 VCGT-110301-FR-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
35° 0.2 VCGT-110302-FR-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.35
86°

non revêtu
PVD unbeschichtet
VCGT uncoated
ELP/ERP-X10 P P P P P
M M M M M
N N N N N
S S S S
TiAlN HTA TiAlX HTAX K20
R Art. N° TiN K10
0.03 VCGT-1103003-ELP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
L 0.08 VCGT-1103008-ELP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
0.1 VCGT-110301-ELP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
0.2 VCGT-110302-ELP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ
R
0.03 VCGT-1103003-ERP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
7 5.5 0.08 VCGT-1103008-ERP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
R 0.1 VCGT-110301-ERP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
35° 0.2 VCGT-110302-ERP-X10 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.35
86°

7.52
