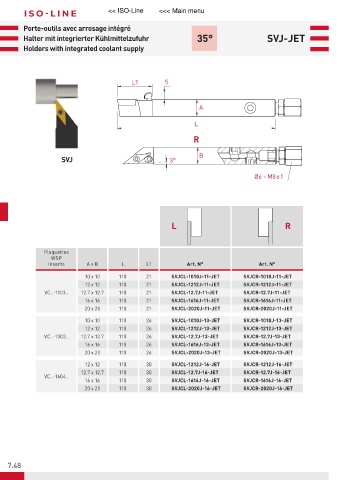

Porte-outils avec arrosage intégré
Halter mit integrierter Kühlmittelzufuhr 35° SVJ-JET
Holders with integrated coolant supply

L1 5

A

L
R

B
SVJ 3°

Ø6 - M8x1

L R

Plaquettes
WSP
Inserts A x B L L1 Art. N° Art. N°
10 x 10 110 21 SVJCL-1010J-11-JET SVJCR-1010J-11-JET
12 x 12 110 21 SVJCL-1212J-11-JET SVJCR-1212J-11-JET
VC..-1103.. 12.7 x 12.7 110 21 SVJCL-12.7J-11-JET SVJCR-12.7J-11-JET
16 x 16 110 21 SVJCL-1616J-11-JET SVJCR-1616J-11-JET
20 x 20 110 21 SVJCL-2020J-11-JET SVJCR-2020J-11-JET
10 x 10 110 26 SVJCL-1010J-13-JET SVJCR-1010J-13-JET
12 x 12 110 26 SVJCL-1212J-13-JET SVJCR-1212J-13-JET
VC..-1303.. 12.7 x 12.7 110 26 SVJCL-12.7J-13-JET SVJCR-12.7J-13-JET
16 x 16 110 26 SVJCL-1616J-13-JET SVJCR-1616J-13-JET
20 x 20 110 26 SVJCL-2020J-13-JET SVJCR-2020J-13-JET
12 x 12 110 30 SVJCL-1212J-16-JET SVJCR-1212J-16-JET
12.7 x 12.7 110 30 SVJCL-12.7J-16-JET SVJCR-12.7J-16-JET
VC..-1604..
16 x 16 110 30 SVJCL-1616J-16-JET SVJCR-1616J-16-JET
20 x 20 110 30 SVJCL-2020J-16-JET SVJCR-2020J-16-JET

7.48
