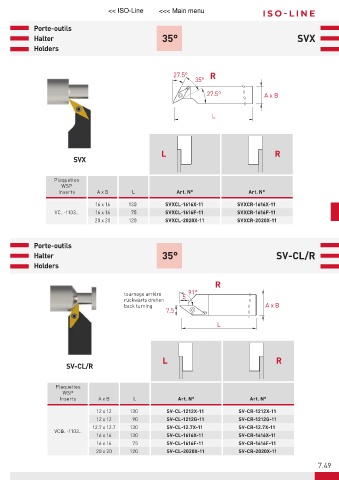

Porte-outils
Halter 35° SVX
Holders
27.5° R
35°
27.5° A x B
L
L R
SVX
Plaquettes
WSP
Inserts A x B L Art. N° Art. N°
16 x 16 130 SVXCL-1616X-11 SVXCR-1616X-11
VC..-1103.. 16 x 16 75 SVXCL-1616F-11 SVXCR-1616F-11
20 x 20 120 SVXCL-2020X-11 SVXCR-2020X-11
Porte-outils
Halter 35° SV-CL/R
Holders
R
tournage arrière 5 91°
rückwärts drehen
back turning A x B
7.5
L
L R
SV-CL/R
Plaquettes
WSP
Inserts A x B L Art. N° Art. N°
12 x 12 130 SV-CL-1212X-11 SV-CR-1212X-11
12 x 12 90 SV-CL-1212G-11 SV-CR-1212G-11
12.7 x 12.7 130 SV-CL-12.7X-11 SV-CR-12.7X-11
VCG..-1103..
16 x 16 130 SV-CL-1616X-11 SV-CR-1616X-11
16 x 16 75 SV-CL-1616F-11 SV-CR-1616F-11
20 x 20 120 SV-CL-2020X-11 SV-CR-2020X-11
7.49
