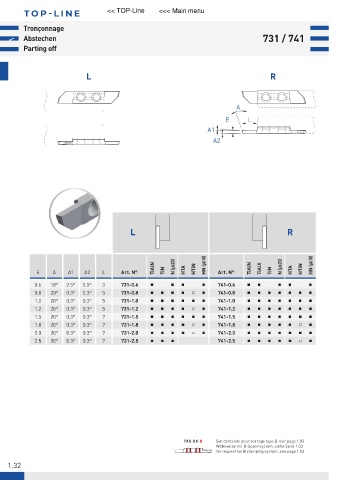

Page 36 - 21-036 APPLITEC catalogue.indb

T OP -LINE << TOP-Line <<< Main menu

Tronçonnage
< Abstechen 731 / 741
Parting off

L R

A
E L
A1
A2

L R

TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN TiAlX N (μk20) HTA HTiN HN (μk10)
E A A1 A2 L Art. N° TiN Art. N° TiN

0.6 18° 2.5° 0.5° 3 731-0.6 Ŷ Ŷ Ŷ Ŷ 741-0.6 Ŷ Ŷ Ŷ Ŷ Ŷ
0.8 20° 0.3° 0.3° 5 731-0.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 741-0.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.0 20° 0.3° 0.3° 5 731-1.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 741-1.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.2 20° 0.3° 0.3° 5 731-1.2 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 741-1.2 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.5 20° 0.3° 0.3° 7 731-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 741-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
1.8 20° 0.3° 0.3° 7 731-1.8 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 741-1.8 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
2.0 20° 0.3° 0.3° 7 731-2.0 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ 741-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.5 20° 0.3° 0.3° 7 731-2.5 Ŷ Ŷ Ŷ 741-2.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ

7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.32
