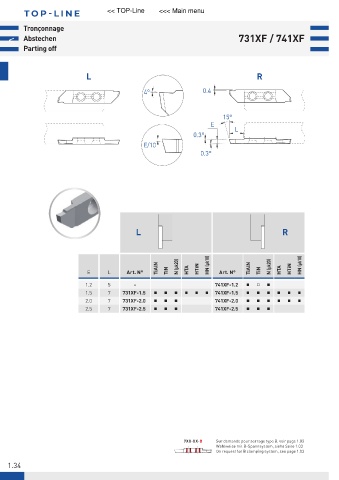

T OP -LINE << TOP-Line <<< Main menu
Tronçonnage
< Abstechen 731XF / 741XF
Parting off
L R
4° 0.4
15°
E
L
0.3°
E/10
0.3°
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
E L Art. N° TiN Art. N° TiN
1.2 5 - 741XF-1.2 Ŷ Ƒ Ŷ
1.5 7 731XF-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 741XF-1.5 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.0 7 731XF-2.0 Ŷ Ŷ Ŷ 741XF-2.0 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
2.5 7 731XF-2.5 Ŷ Ŷ Ŷ 741XF-2.5 Ŷ Ŷ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.34
