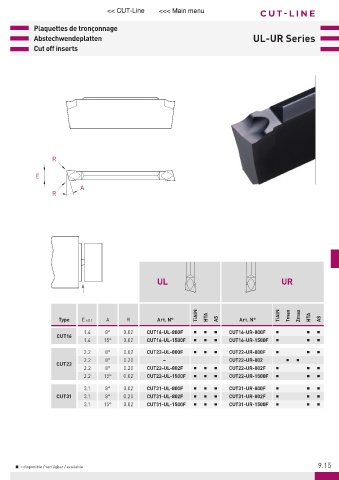

Page 399 - 21-036 APPLITEC catalogue.indb

<< CUT-Line <<< Main menu C U T -LINE

Plaquettes de tronçonnage
Abstechwendeplatten UL-UR Series
Cut off inserts

R

E
A
R

UL UR

TiAlN HTA TiAlN Tmax Zmax HTA
Type E ±0.1 A R Art. N° AS Art. N° AS
1.6 8° 0.02 CUT16-UL-800F Ŷ Ŷ Ŷ CUT16-UR-800F Ŷ Ŷ Ŷ
CUT16
1.6 15° 0.02 CUT16-UL-1500F Ŷ Ŷ Ŷ CUT16-UR-1500F Ŷ Ŷ Ŷ
2.2 8° 0.02 CUT22-UL-800F Ŷ Ŷ Ŷ CUT22-UR-800F Ŷ Ŷ Ŷ
2.2 8° 0.20 – CUT22-UR-802 Ŷ Ŷ
CUT22
2.2 8° 0.20 CUT22-UL-802F Ŷ Ŷ Ŷ CUT22-UR-802F Ŷ Ŷ Ŷ
2.2 15° 0.02 CUT22-UL-1500F Ŷ Ŷ Ŷ CUT22-UR-1500F Ŷ Ŷ Ŷ
3.1 8° 0.02 CUT31-UL-800F Ŷ Ŷ Ŷ CUT31-UR-800F Ŷ Ŷ Ŷ
CUT31 3.1 8° 0.20 CUT31-UL-802F Ŷ Ŷ Ŷ CUT31-UR-802F Ŷ Ŷ Ŷ
3.1 15° 0.02 CUT31-UL-1500F Ŷ Ŷ Ŷ CUT31-UR-1500F Ŷ Ŷ Ŷ

Ŷ = disponible / verfügbar / available 9.15
