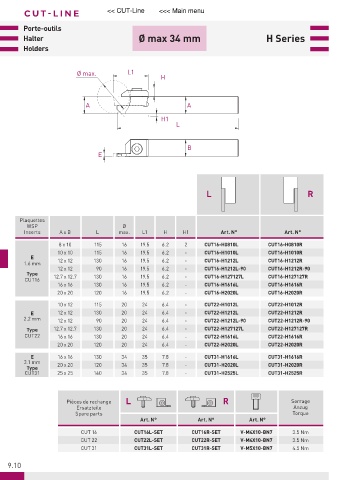

Page 394 - 21-036 APPLITEC catalogue.indb

C U T -LINE << CUT-Line <<< Main menu

Porte-outils
Halter Ø max 34 mm H Series
Holders

Ø max. L1
H

A A
H1
L

B
E

L R

Plaquettes
WSP Ø
Inserts A x B L max. L1 H H1 Art. N° Art. N°
8 x 10 115 16 19.5 6.2 2 CUT16-H0810L CUT16-H0810R
10 x 10 115 16 19.5 6.2 - CUT16-H1010L CUT16-H1010R
E
1.6 mm 12 x 12 130 16 19.5 6.2 - CUT16-H1212L CUT16-H1212R
12 x 12 90 16 19.5 6.2 - CUT16-H1212L-90 CUT16-H1212R-90
Type
CUT16 12.7 x 12.7 130 16 19.5 6.2 - CUT16-H127127L CUT16-H127127R
16 x 16 130 16 19.5 6.2 - CUT16-H1616L CUT16-H1616R
20 x 20 120 16 19.5 6.2 - CUT16-H2020L CUT16-H2020R
10 x 12 115 20 24 6.4 - CUT22-H1012L CUT22-H1012R
E 12 x 12 130 20 24 6.4 - CUT22-H1212L CUT22-H1212R
2.2 mm 12 x 12 90 20 24 6.4 - CUT22-H1212L-90 CUT22-H1212R-90
Type 12.7 x 12.7 130 20 24 6.4 - CUT22-H127127L CUT22-H127127R
CUT22 16 x 16 130 20 24 6.4 - CUT22-H1616L CUT22-H1616R
20 x 20 120 20 24 6.4 - CUT22-H2020L CUT22-H2020R
E 16 x 16 130 34 35 7.8 - CUT31-H1616L CUT31-H1616R
3.1 mm 20 x 20 120 34 35 7.8 - CUT31-H2020L CUT31-H2020R
Type
CUT31 25 x 25 140 34 35 7.8 - CUT31-H2525L CUT31-H2525R

Pièces de rechange L R Serrage
Ersatzteile Anzug
Spare parts Torque
Art. N° Art. N° Art. N°
CUT 16 CUT16L-SET CUT16R-SET V-M4X10-BN7 3.5 Nm
CUT 22 CUT22L-SET CUT22R-SET V-M4X10-BN7 3.5 Nm
CUT 31 CUT31L-SET CUT31R-SET V-M5X10-BN7 4.5 Nm
