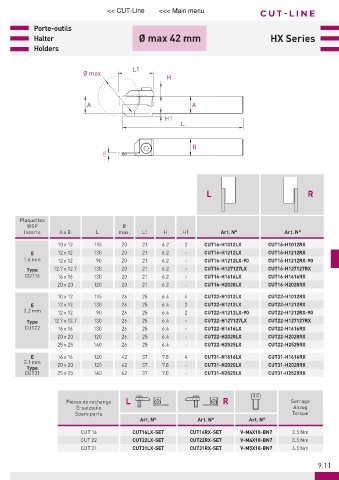

Page 395 - 21-036 APPLITEC catalogue.indb

<< CUT-Line <<< Main menu C U T -LINE

Porte-outils
Halter Ø max 42 mm HX Series
Holders

L1
Ø max.
H

A A
H1
L

B
E

L R

Plaquettes
WSP Ø
Inserts A x B L max. L1 H H1 Art. N° Art. N°
10 x 12 115 20 21 6.2 2 CUT16-H1012LX CUT16-H1012RX
E 12 x 12 130 20 21 6.2 - CUT16-H1212LX CUT16-H1212RX
1.6 mm 12 x 12 90 20 21 6.2 - CUT16-H1212LX-90 CUT16-H1212RX-90
Type 12.7 x 12.7 130 20 21 6.2 - CUT16-H127127LX CUT16-H127127RX
CUT16 16 x 16 130 20 21 6.2 - CUT16-H1616LX CUT16-H1616RX
20 x 20 120 20 21 6.2 - CUT16-H2020LX CUT16-H2020RX
10 x 12 115 26 25 6.4 4 CUT22-H1012LX CUT22-H1012RX
E 12 x 12 130 26 25 6.4 2 CUT22-H1212LX CUT22-H1212RX
2.2 mm 12 x 12 90 26 25 6.4 2 CUT22-H1212LX-90 CUT22-H1212RX-90
Type 12.7 x 12.7 130 26 25 6.4 - CUT22-H127127LX CUT22-H127127RX
CUT22 16 x 16 130 26 25 6.4 - CUT22-H1616LX CUT22-H1616RX
20 x 20 120 26 25 6.4 - CUT22-H2020LX CUT22-H2020RX
25 x 25 140 26 25 6.4 - CUT22-H2525LX CUT22-H2525RX
E 16 x 16 120 42 37 7.8 4 CUT31-H1616LX CUT31-H1616RX
3.1 mm 20 x 20 120 42 37 7.8 - CUT31-H2020LX CUT31-H2020RX
Type
CUT31 25 x 25 140 42 37 7.8 - CUT31-H2525LX CUT31-H2525RX

Pièces de rechange L R Serrage
Ersatzteile Anzug
Spare parts Torque
Art. N° Art. N° Art. N°
CUT 16 CUT16LX-SET CUT16RX-SET V-M4X10-BN7 3.5 Nm
CUT 22 CUT22LX-SET CUT22RX-SET V-M4X10-BN7 3.5 Nm
CUT 31 CUT31LX-SET CUT31RX-SET V-M5X10-BN7 4.5 Nm

9.11
