<< MICRO-Line   <<< Main menu          MICRO-LINE

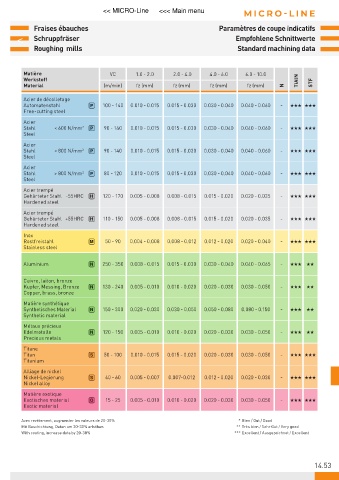

          Fraises ébauches                                   Paramètres de coupe indicatifs
      <   Schruppfräser                                           Empfohlene Schnittwerte
          Roughing  mills                                          Standard machining data


        Matière                VC     1.0 - 2.0   2.0 - 4.0  4.0 - 6.0  6.0 - 10.0
        Werkstoff                                                                  TiAlN
        Material              (m/min)  fz (mm)     fz (mm)     fz (mm)     fz (mm)     N  STF

        Acier de décolletage
        Automatenstahl    P  100 - 140  0.010 - 0.015  0.015 - 0.030  0.030 - 0.040  0.040 - 0.060  -
        Free-cutting steel
        Acier
        Stahl   < 600 N/mm 2  P  90 - 140  0.010 - 0.015  0.015 - 0.030  0.030 - 0.040  0.040 - 0.060  -
        Steel
        Acier
        Stahl   < 800 N/mm 2  P  90 - 140  0.010 - 0.015  0.015 - 0.030  0.030 - 0.040  0.040 - 0.060  -
        Steel
        Acier
        Stahl   > 800 N/mm 2  P  80 - 120  0.010 - 0.015  0.015 - 0.030  0.030 - 0.040  0.040 - 0.060  -
        Steel
        Acier trempé
        Gehärteter Stahl  -55HRC  H  120 - 170  0.005 - 0.008  0.008 - 0.015  0.015 - 0.020  0.020 - 0.035  -
        Hardened steel
        Acier trempé
        Gehärteter Stahl  +55HRC  H  110 - 150  0.005 - 0.008  0.008 - 0.015  0.015 - 0.020  0.020 - 0.035  -
        Hardened steel
        Inox
        Rostfreistahl     M   50 - 90  0.004 - 0.008  0.008 - 0.012  0.012 - 0.020  0.020 - 0.040  -
        Stainless steel

        Aluminium         N  250 - 350  0.008 - 0.015  0.015 - 0.030  0.030 - 0.040  0.040 - 0.065  -

        Cuivre, laiton, bronze
        Kupfer, Messing, Bronze  N  130 - 240  0.005 - 0.010  0.010 - 0.020  0.020 - 0.030  0.030 - 0.050  -
        Copper, brass, bronze
        Matière synthétique
        Synthetisches Material   N  150 - 300  0.020 - 0.030  0.030 - 0.050  0.050 - 0.080  0.080 - 0.150  -
        Synthetic material
        Métaux précieux
        Edelmetalle       N  120 - 150  0.005 - 0.010  0.010 - 0.020  0.020 - 0.030  0.030 - 0.050  -
        Precious metals
        Titane
        Titan             S   50 - 100  0.010 - 0.015  0.015 - 0.020  0.020 - 0.030  0.030 - 0.050  -
        Titanium
        Alliage de nickel
        Nickel-Legierung        S  40 - 60  0.005 - 0.007  0.007-0.012  0.012 - 0.020  0.020 - 0.030  -
        Nickel alloy
        Matière exotique
        Exotisches material  O  15 - 25  0.005 - 0.010  0.010 - 0.020  0.020 - 0.030  0.030 - 0.050  -
        Exotic material
       Avec revêtement, augmenter les valeurs de 20-30%            * Bien / Gut / Good
       Mit Beschichtung, Daten um 20-30% erhöhen                   ** Très bien / Sehr Gut / Very good
       With coating, increase data by 20-30%                      *** Excellent / Ausgezeichnet / Excellent




                                                                                        14.53
