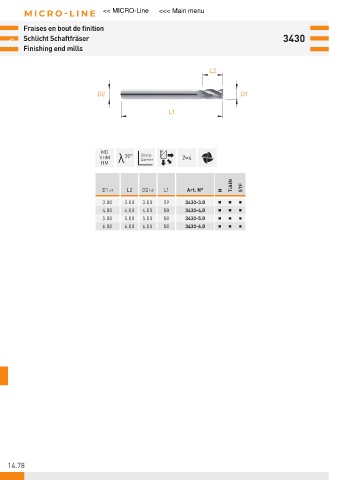

Fraises en bout de finition
< Schlicht Schaftfräser 3430
Finishing end mills
L2
D2 D1
L1
MD
VHM λ 30° Sharp Z=4
Corner
HM
TiAlN STF
D1 e9 L2 D2 h5 L1 Art. N° N
3.00 3.00 3.00 39 3430-3.0
4.00 4.00 4.00 50 3430-4.0
5.00 5.00 5.00 50 3430-5.0
6.00 6.00 6.00 50 3430-6.0
