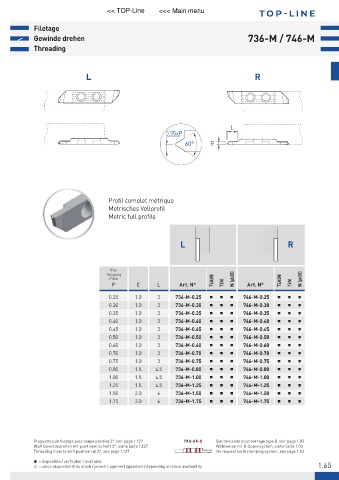

Page 69 - 21-036 APPLITEC catalogue.indb

<< TOP-Line <<< Main menu T OP -LINE

Filetage
< Gewinde drehen 736-M / 746-M
Threading

L R

L
0.55xP
60° E

Profil complet métrique
Metrisches Vollprofil
Metric full profile

L R

Pas
Steigung
Pitch TiAlN N (μk20) TiAlN N (μk20)
P E L Art. N° TiN Art. N° TiN
0.25 1.0 3 736-M-0.25 Ŷ Ŷ Ŷ 746-M-0.25 Ŷ Ŷ Ŷ
0.30 1.0 3 736-M-0.30 Ŷ Ŷ Ŷ 746-M-0.30 Ŷ Ŷ Ŷ
0.35 1.0 3 736-M-0.35 Ŷ Ŷ Ŷ 746-M-0.35 Ŷ Ŷ Ŷ
0.40 1.0 3 736-M-0.40 Ŷ Ŷ Ŷ 746-M-0.40 Ŷ Ŷ Ŷ
0.45 1.0 3 736-M-0.45 Ŷ Ŷ Ŷ 746-M-0.45 Ŷ Ŷ Ŷ
0.50 1.0 3 736-M-0.50 Ŷ Ŷ Ŷ 746-M-0.50 Ŷ Ŷ Ŷ
0.60 1.0 3 736-M-0.60 Ŷ Ŷ Ŷ 746-M-0.60 Ŷ Ŷ Ŷ
0.70 1.0 3 736-M-0.70 Ŷ Ŷ Ŷ 746-M-0.70 Ŷ Ŷ Ŷ
0.75 1.0 3 736-M-0.75 Ŷ Ŷ Ŷ 746-M-0.75 Ŷ Ŷ Ŷ
0.80 1.5 4.5 736-M-0.80 Ŷ Ŷ Ŷ 746-M-0.80 Ŷ Ŷ Ŷ
1.00 1.5 4.5 736-M-1.00 Ŷ Ŷ Ŷ 746-M-1.00 Ŷ Ŷ Ŷ
1.25 1.5 4.5 736-M-1.25 Ŷ Ŷ Ŷ 746-M-1.25 Ŷ Ŷ Ŷ
1.50 2.0 6 736-M-1.50 Ŷ Ŷ Ŷ 746-M-1.50 Ŷ Ŷ Ŷ
1.75 2.0 6 736-M-1.75 Ŷ Ŷ Ŷ 746-M-1.75 Ŷ Ŷ Ŷ

Plaquettes de filetage avec coupe positive 2°, voir page 1.127 7XX-XX-B Sur demande pour serrage type B, voir page 1.03
WSP Gewindedrehen mit positivem Schnitt 2°, siehe Seite 1.127 Wahlweise mit B-Spannsystem, siehe Seite 1.03
Threading inserts with positive cut 2°, see page 1.127 On request for B clamping system, see page 1.03
Ŷ = disponible / verfügbar / available
1.65
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
