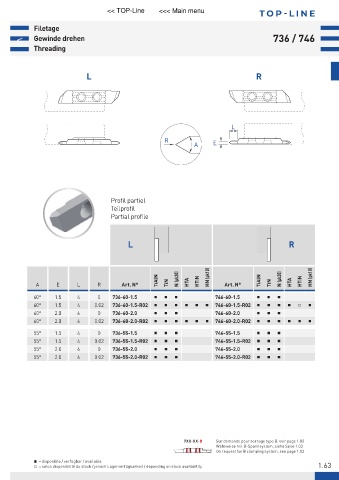

Page 67 - 21-036 APPLITEC catalogue.indb
P. 67
<< TOP-Line <<< Main menu T OP -LINE
Filetage
< Gewinde drehen 736 / 746
Threading
L R
L
R
A E
Profil partiel
Teilprofil
Partial profile
L R
TiAlN N (μk20) HTA HTiN HN (μk10) TiAlN N (μk20) HTA HTiN HN (μk10)
A E L R Art. N° TiN Art. N° TiN
60° 1.5 4 0 736-60-1.5 Ŷ Ŷ Ŷ 746-60-1.5 Ŷ Ŷ Ŷ
60° 1.5 4 0.02 736-60-1.5-R02 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 746-60-1.5-R02 Ŷ Ŷ Ŷ Ŷ Ƒ Ŷ
60° 2.0 6 0 736-60-2.0 Ŷ Ŷ Ŷ 746-60-2.0 Ŷ Ŷ Ŷ
60° 2.0 6 0.02 736-60-2.0-R02 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ 746-60-2.0-R02 Ŷ Ŷ Ŷ Ŷ Ŷ Ŷ
55° 1.5 4 0 736-55-1.5 Ŷ Ŷ Ŷ 746-55-1.5 Ŷ Ŷ Ŷ
55° 1.5 4 0.02 736-55-1.5-R02 Ŷ Ŷ Ŷ 746-55-1.5-R02 Ŷ Ŷ Ŷ
55° 2.0 6 0 736-55-2.0 Ŷ Ŷ Ŷ 746-55-2.0 Ŷ Ŷ Ŷ
55° 2.0 6 0.02 736-55-2.0-R02 Ŷ Ŷ Ŷ 746-55-2.0-R02 Ŷ Ŷ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
Ŷ = disponible / verfügbar / available
1.63
Ƒ = selon disponibilité du stock / jenach Lagerverfügbarkeit / depending on stock availability
