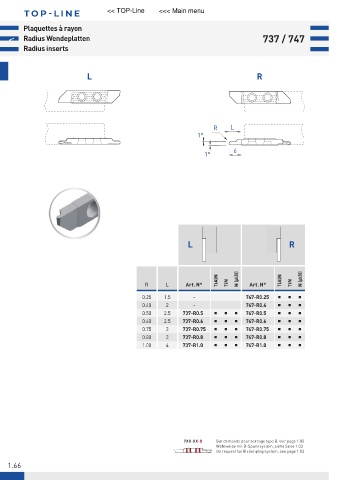

P. 70
T OP -LINE << TOP-Line <<< Main menu
Plaquettes à rayon
< Radius Wendeplatten 737 / 747
Radius inserts
L R
R L
1°
6
1°
L R
TiAlN N (μk20) TiAlN N (μk20)
R L Art. N° TiN Art. N° TiN
0.25 1.5 - 747-R0.25 Ŷ Ŷ Ŷ
0.40 2 - 747-R0.4 Ŷ Ŷ Ŷ
0.50 2.5 737-R0.5 Ŷ Ŷ Ŷ 747-R0.5 Ŷ Ŷ Ŷ
0.60 2.5 737-R0.6 Ŷ Ŷ Ŷ 747-R0.6 Ŷ Ŷ Ŷ
0.75 3 737-R0.75 Ŷ Ŷ Ŷ 747-R0.75 Ŷ Ŷ Ŷ
0.80 3 737-R0.8 Ŷ Ŷ Ŷ 747-R0.8 Ŷ Ŷ Ŷ
1.00 4 737-R1.0 Ŷ Ŷ Ŷ 747-R1.0 Ŷ Ŷ Ŷ
7XX-XX-B Sur demande pour serrage type B, voir page 1.03
Wahlweise mit B-Spannsystem, siehe Seite 1.03
On request for B clamping system, see page 1.03
1.66
